适配于W 三回路轨道系统，外形设计精致，无可视散热器，由压铸铝制成灯身，内置无频闪驱动电器，采用COB 发光模组，提供多种标准色温选择， 具有优秀的洗墙配光以及出色的显色性，广泛使用于博物馆、美术馆、商业空间、酒店、零售等场所。

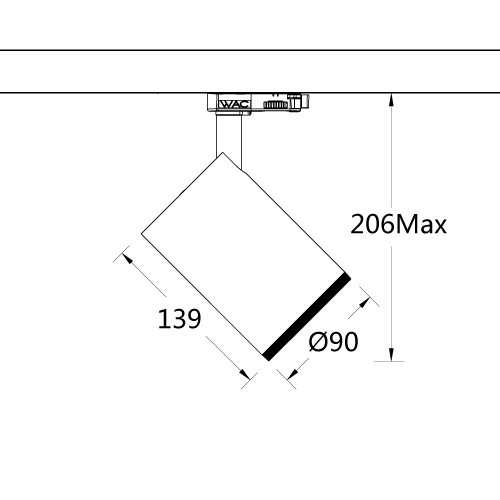

TL15W/TL16W/TL17W 尺寸图详情
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL15W | LM06 COB 6W LM12 COB 12W | O On-board D 0-10V Dimming | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL16W | LM18 COB 18W LM26 COB 26W | O On-board D 0-10V Dimming A DALI | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL17W | LM34 COB 34W | O On-board D 0-10V Dimming A DALI | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
示例：TL17WLM34-O-W930WT
