下照调角一体化筒灯，整灯封密式设计，调角过程中无漏光。全新的隐光技术带来良好的防眩光性能及颜色一致性控制，具有舒适的出光效果。模组化设计，现场可自由拆卸并更换反射器和灯体。

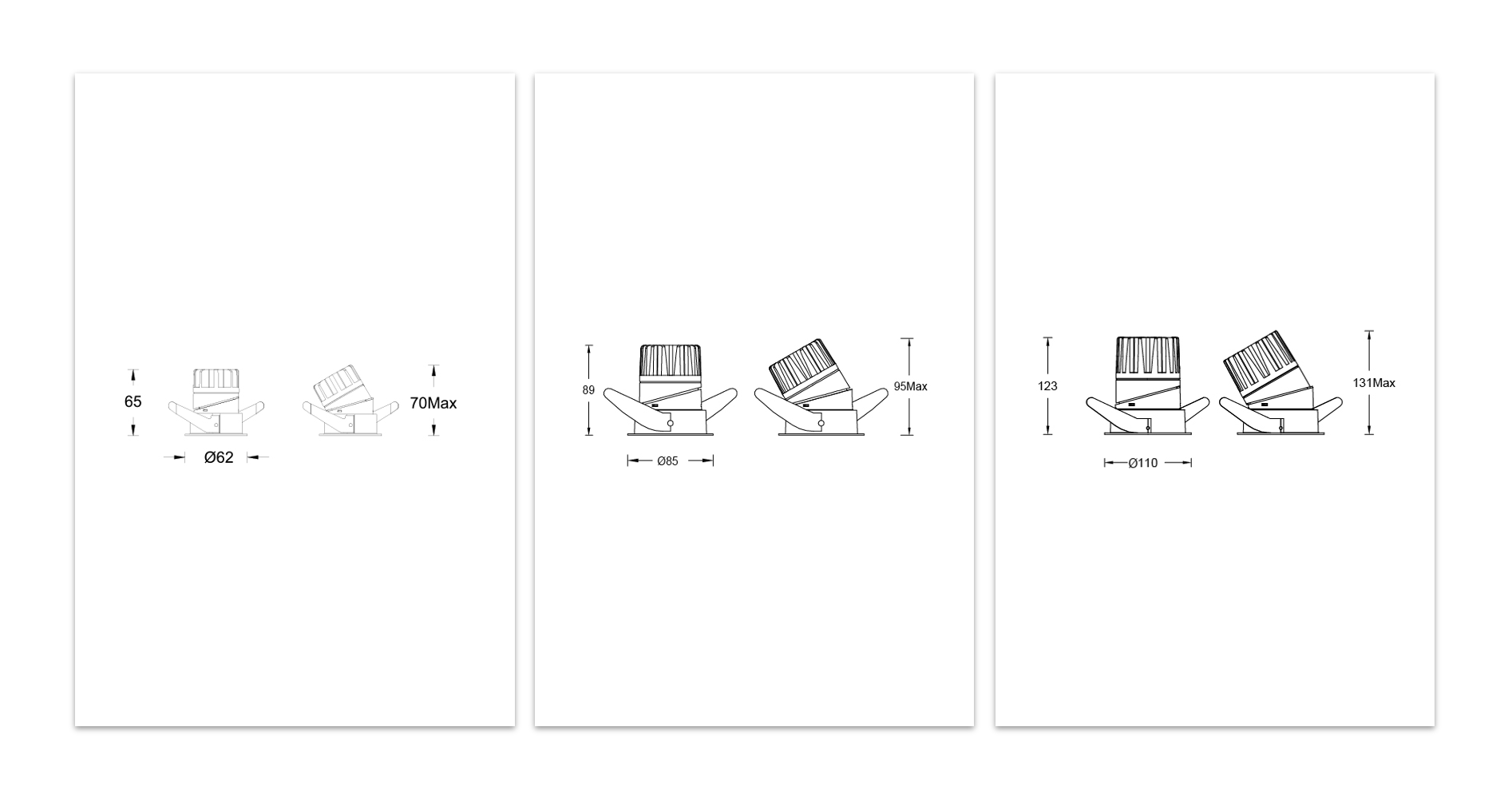

2/3/4 产品尺寸图
通过专利调角方式，使其兼顾了下照和调节的功能。整灯封密式设计，保证调角过程中无漏光
ULTRA调节过程中，光斑始终保持着干净、完整的状态
可不借助任何外力，加装三次光学配件获得丰富出光效果。甚至，可现场徒手拆换透镜模组，一灯多用
SieMatic西曼帝克上海旗舰店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 2 2” | 1 Round Trim | LM05 COB 5W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 2 2” | 1 Round Trim | LM07 COB 7W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 1 Round Trim | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver A DALI | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 1 Round Trim | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W LM25 COB 25W | E On-Off D 0-10V Dimming | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 1 Round Trim | LM25 COB 25W | N No Driver A DALI | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：DLN41-LM18E-230SWT
