适配于 J 单回路轨道系统，外形设计精致，无可视散热器，内置无频闪驱动电 器，采用 COB发光模组，提供多种标准色温选择, 具有优秀的洗墙配光以及出色的显色性, 广泛使用于博物馆、美术馆、商业高空间、酒店、零售等场所。

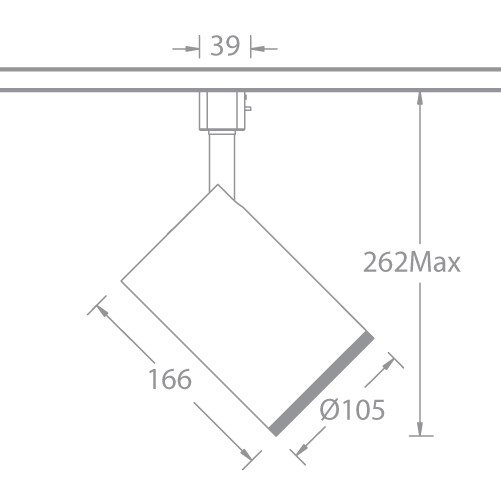

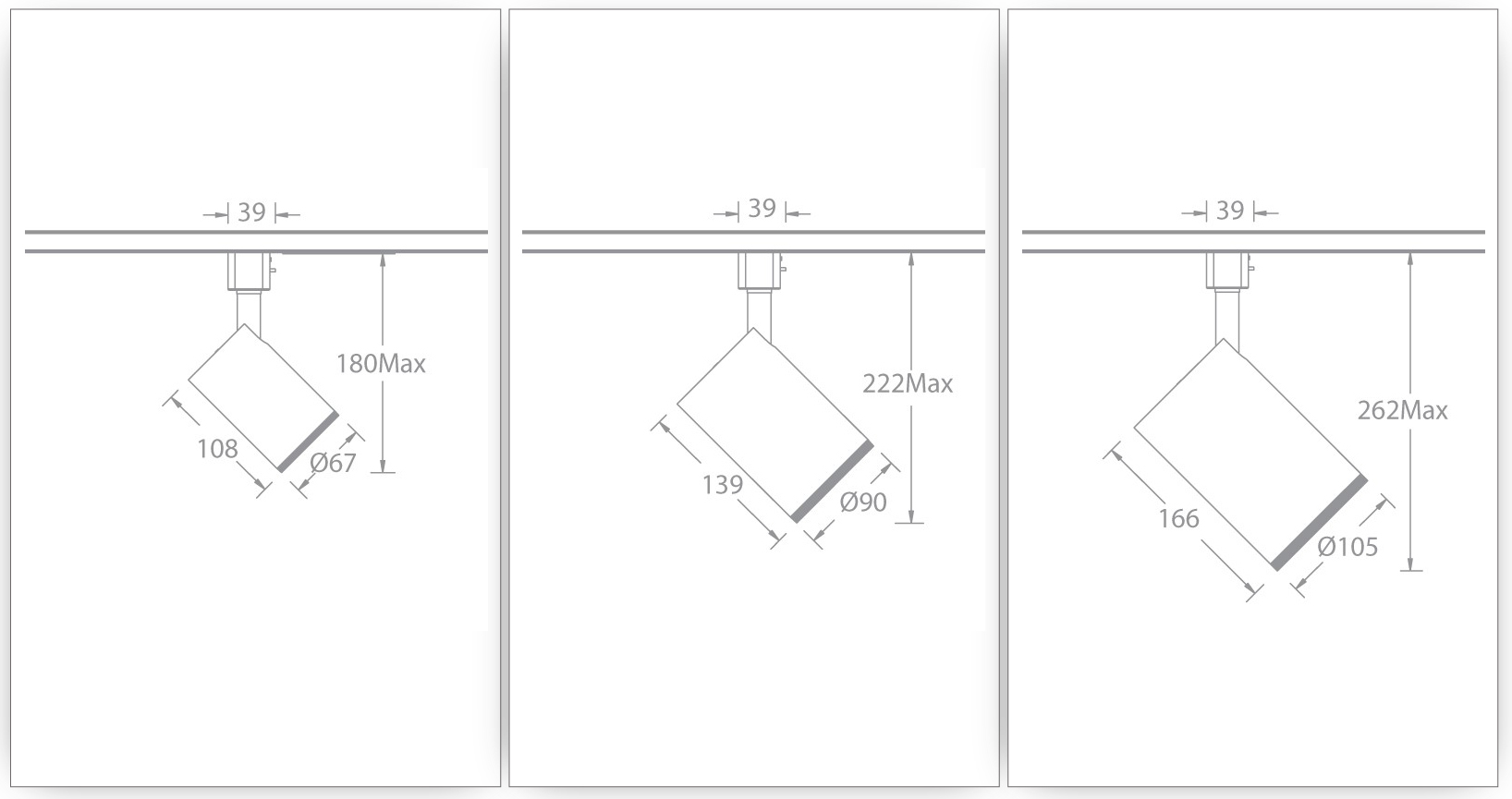

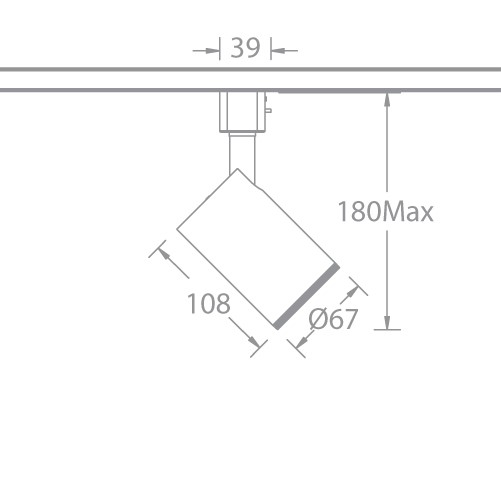

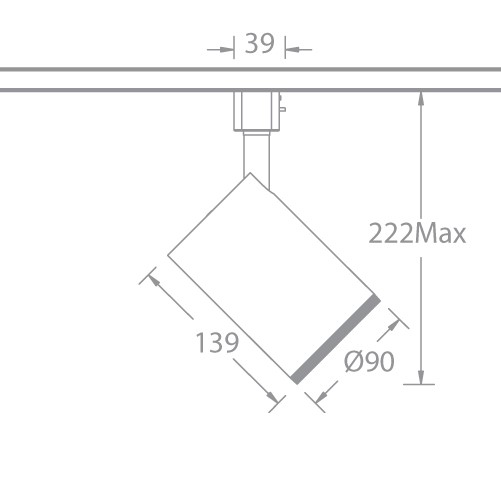

JL15W/JL16W/JL17W 尺寸图详情
Model | LED | Dimming | Beam | CRI | CCT | Finish |
JL15W | LM06 COB 6W LM12 COB 12W | O On-board | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
JL16W | LM18 COB 18W LM26 COB 26W | O On-board | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
JL17W | LM34 COB 34W | O On-board | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
示例：JL17WLM34-O-W930WT
