目录

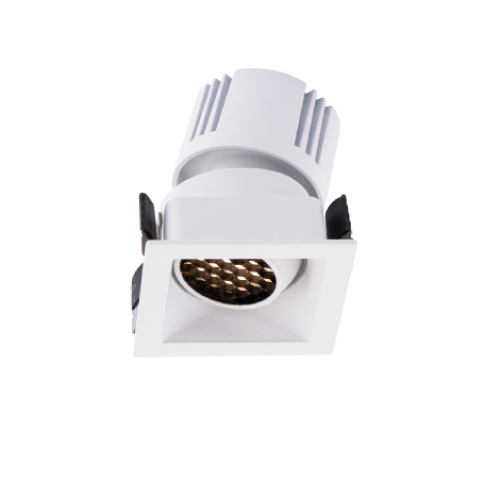

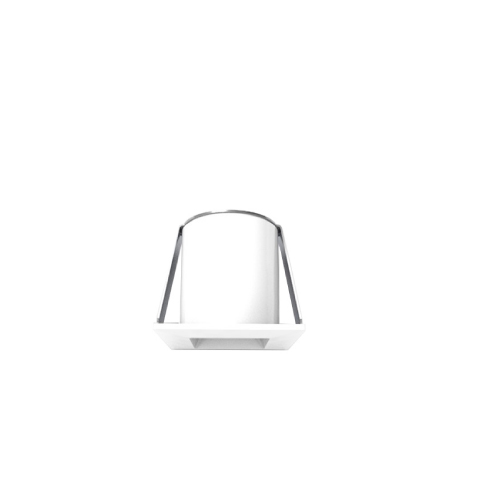

VOLTA系列迷你方形筒灯，外形简洁，尺寸精致；采用透镜配光，具备精准的出光角度，同时具有极致的防眩光效果。可应用于酒店及商业公共空间等场所。
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DLT | 0 0.5” | 5 Square Trim
| LD01 LED 1W | T DMX512(24VDC) M MTB* N No Driver | 1 17° 2 24° 3 36° 6 60° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black | BK Black | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DLT | 0 0.5” | 5 Square Trim
| LD01 LED 1W | T DMX512(24VDC) M MTB* N No Driver | 1 17° 2 24° 3 36° 6 60° | 27 2700K 30 3000K 35 3500K 40 4000K | W White | WT White | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DDT | 1 1” | 5 Square Trim
| LD02 LED 2W | E On-Off N No Driver | 1 17° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black | BK Black | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DDT | 1 1” | 5 Square Trim
| LD02 LED 2W | E On-Off N No Driver | 1 17° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K | W White | WT White | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DDT | 1 1” | 5 Square Trim
| LD05 LED 5W | E On-Off D 0-10V Dimming A DALI N No Driver | 1 17° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black | BK Black | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DDT | 1 1” | 5 Square Trim
| LD05 LED 5W | E On-Off D 0-10V Dimming A DALI N No Driver | 1 17° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W White | WT White | ||
示例：DLT05-LD01N-230WWT。注：除60°之外，其他出厂时均自带蜂窝。“MTB”需单独订购，不可直接接入市电
