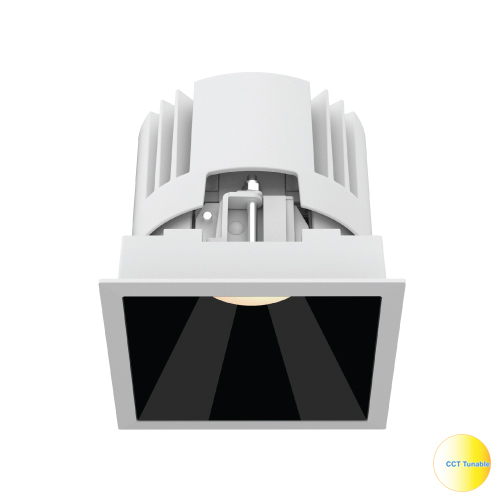

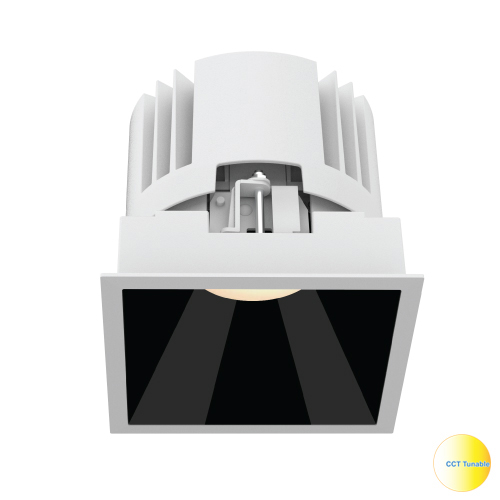

方形窄边嵌入式下照筒灯，流线型外观，精准的透镜和黑镜反射器设计，保证出光的同时仍能达到极致的防眩效果。封密式光源腔，最大程度减少潮湿环境对其性能的影响。可自由拆卸并更换反射器或光学配件，极大的提高了现场的便利性。
4/5/6寸灯具详细尺寸图
对流式散热+包围式烟囱散热 双设计
有力保障其在潮湿环境下的性能稳定
实际点亮展示，光斑干净、柔和，无杂项光线
兼具出光与防眩设计，调角全程无杂散光
VOLTA
上海中心J酒店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 4 4” | 5 Square Trim | LM18 COB 18W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 5 5” | 5 Square Trim | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 6 6” | 5 Square Trim | LM43 COB 43W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
示例：DLT65-LM43A-2CCSWT
