DDT45/DDT55/DDT65 4/5/6寸方形窄边调角筒灯

调角 方形

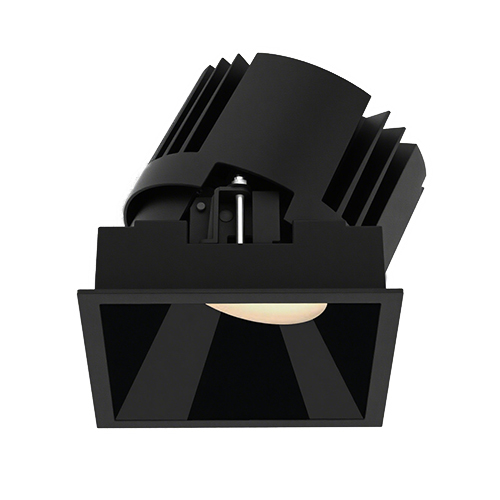

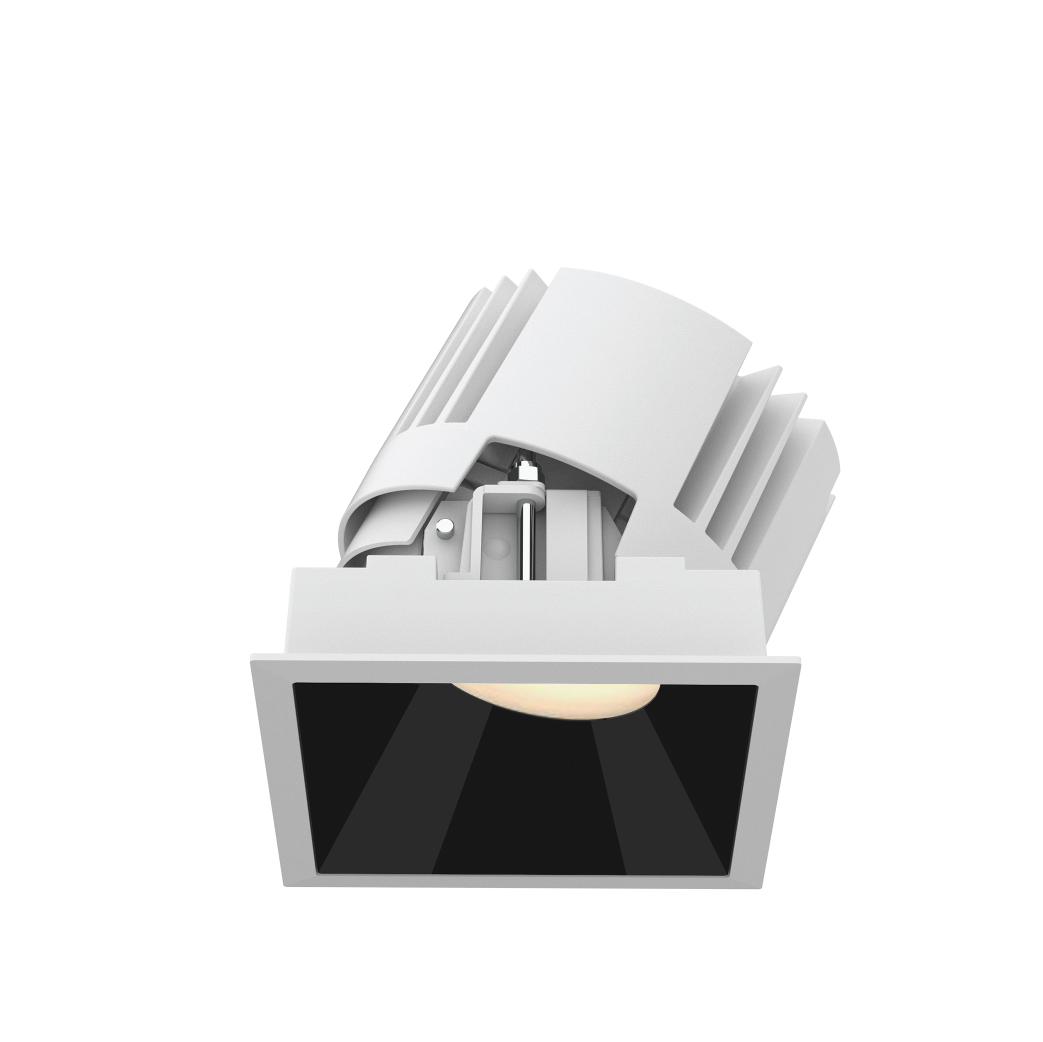

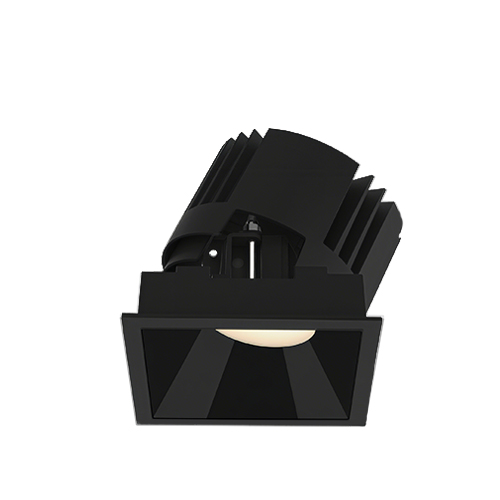

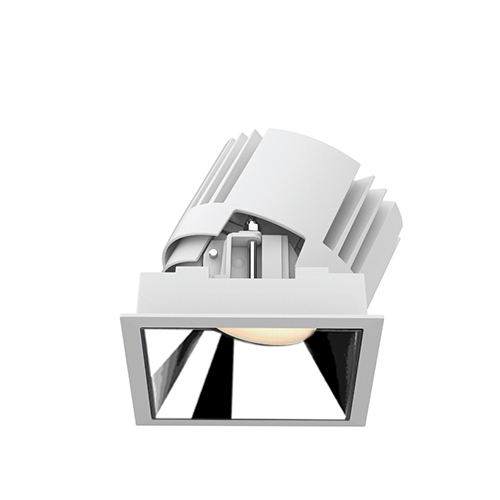

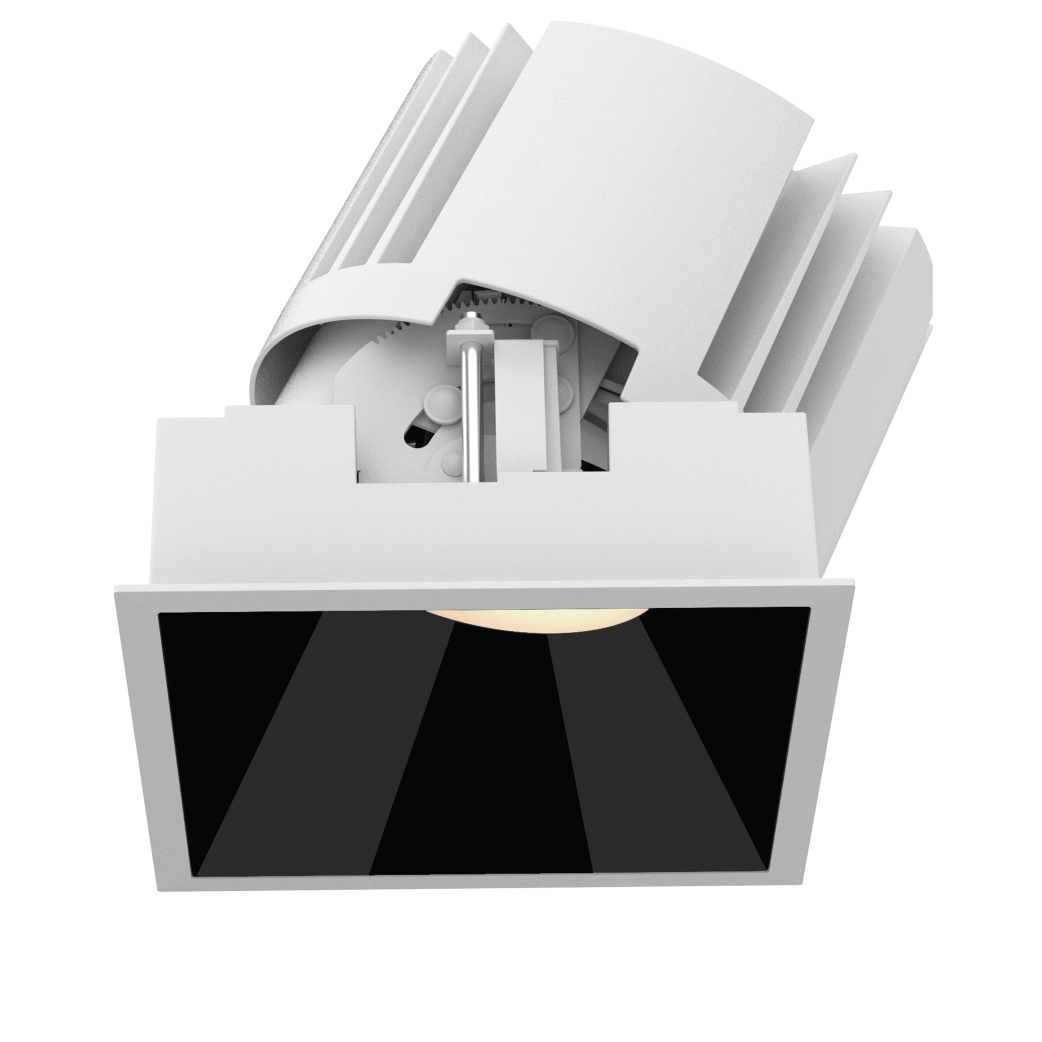

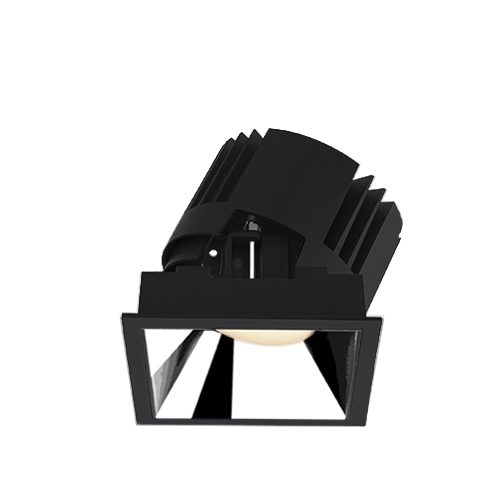

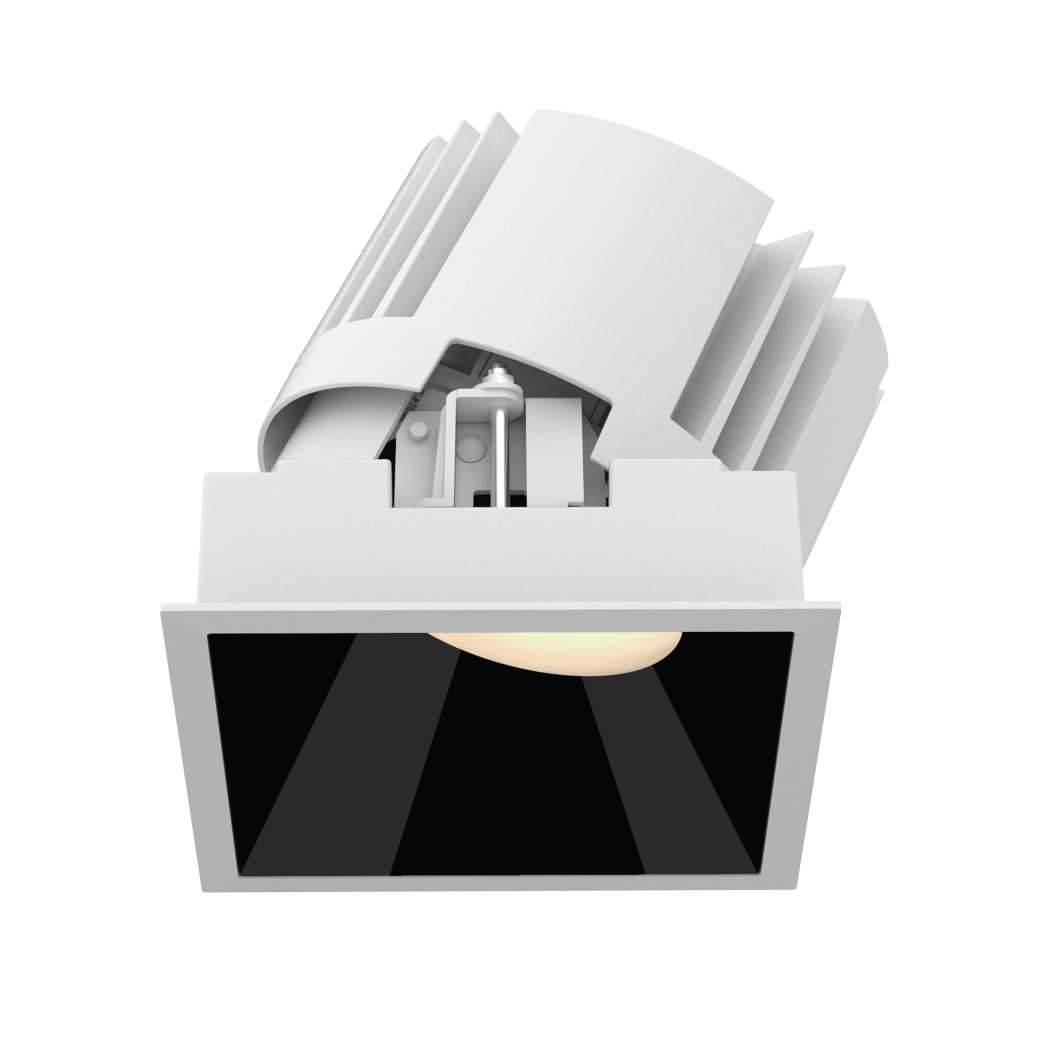

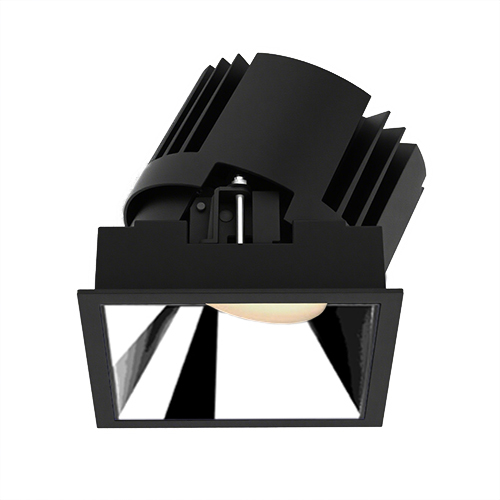

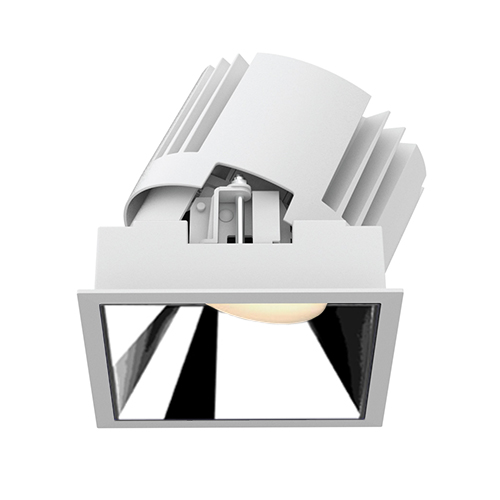

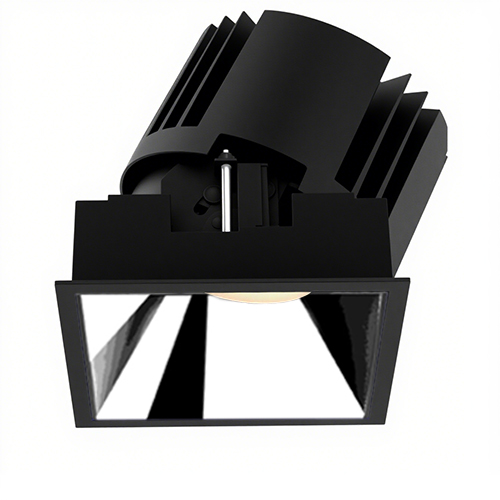

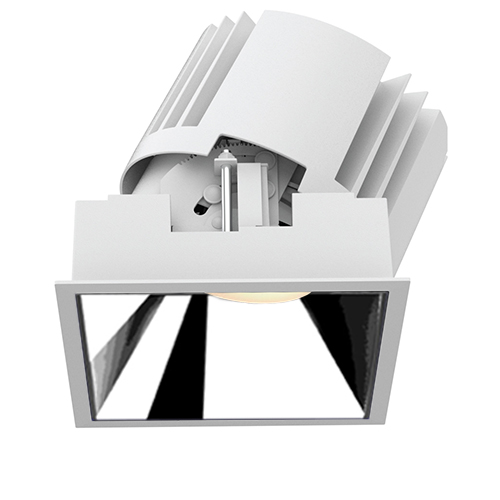

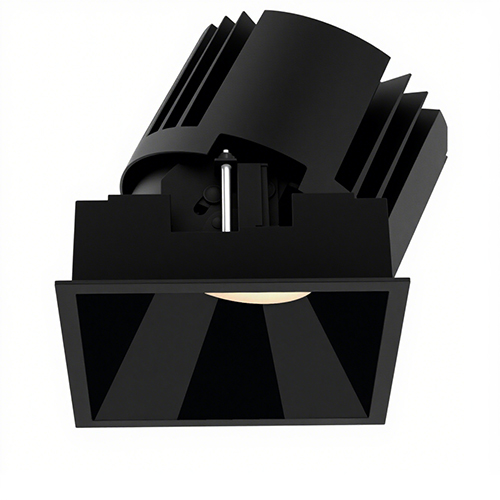

DDT45/DDT55/DDT65 4/5/6寸方形窄边调角筒灯

流线型外观,采用精准的透镜和黑镜反射器设计,保证出光的同时仍能达到极致的防眩效果,调角全程无杂斑。封密式光源腔,最大程度减少潮湿环境对其性能的影响;可自由拆卸并更换反射器或配件,极大的提高了现场的便利性。

产品特点

VOLTA方形调角系列尺寸图

4/5/6寸灯具详细尺寸图

独特外观设计

对流散热+包围式烟囱散热,提升散热性能

IP44密封式光源腔体设计

有力保障其在潮湿环境下的性能稳定

无杂项光斑(右侧VOLTA)

实际点亮展示,光斑干净、柔和,无杂项光线

调节无漏光(右侧VOLTA)

兼具出光与防眩设计,调角全程无杂散光

VOLTA

上海中心J酒店

产品规格

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

4 4”

5 Square Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

4 4”

5 Square Trim

LM13  COB 13W

LM18  COB 18W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

4 4”

5 Square Trim

LM18  COB 18W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

5 5”

5 Square Trim

LD24  LED 24W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

5 5”

5 Square Trim

LM18  COB 18W

LM25  COB 25W

LM32  COB 32W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

5 5”

5 Square Trim

LM32  COB 32W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

6 6”

5 Square Trim

LD32  LED 32W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

6 6”

5 Square Trim

LM32  COB 32W

LM43  COB 43W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

6 6”

1 Round Trim

LM43  COB 43W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

示例:DDT65-LM43E-230SWT
