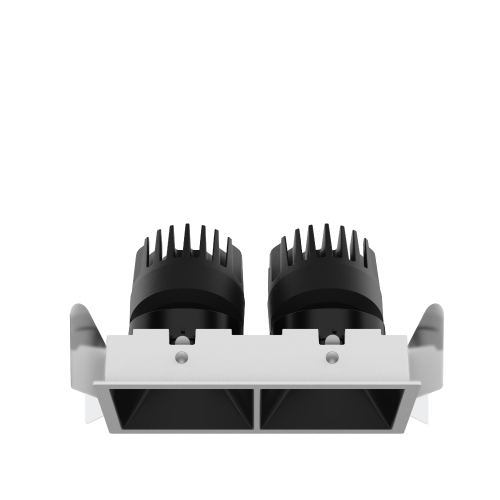

ELANA Pro 方形窄边嵌入式组合灯具，完美融合下照和调角功能一体化。通过透镜精准配光，并搭配高品质反射器，带来舒适视觉感受并保证光斑的 完整性。特别适用于高档酒店，商业及办公等公共空间。
下照的稳定、调角的灵活，兼而有之
蜂窝+40°防眩光角反射器，双重保障，提供极致舒适视觉体验
SieMatic西曼帝克上海旗舰店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 3 3” | 5 Rectangular Trim | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 3 3” | 5 Rectangular Trim | 213 COB 2*13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
示例：MTH35-210-E230SWT，15°出厂自带蜂窝，其他角度不带。
