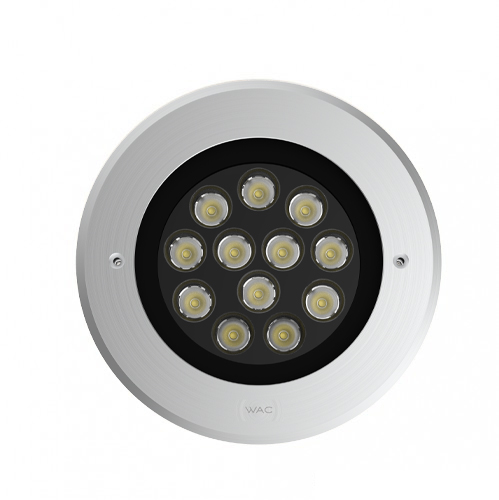

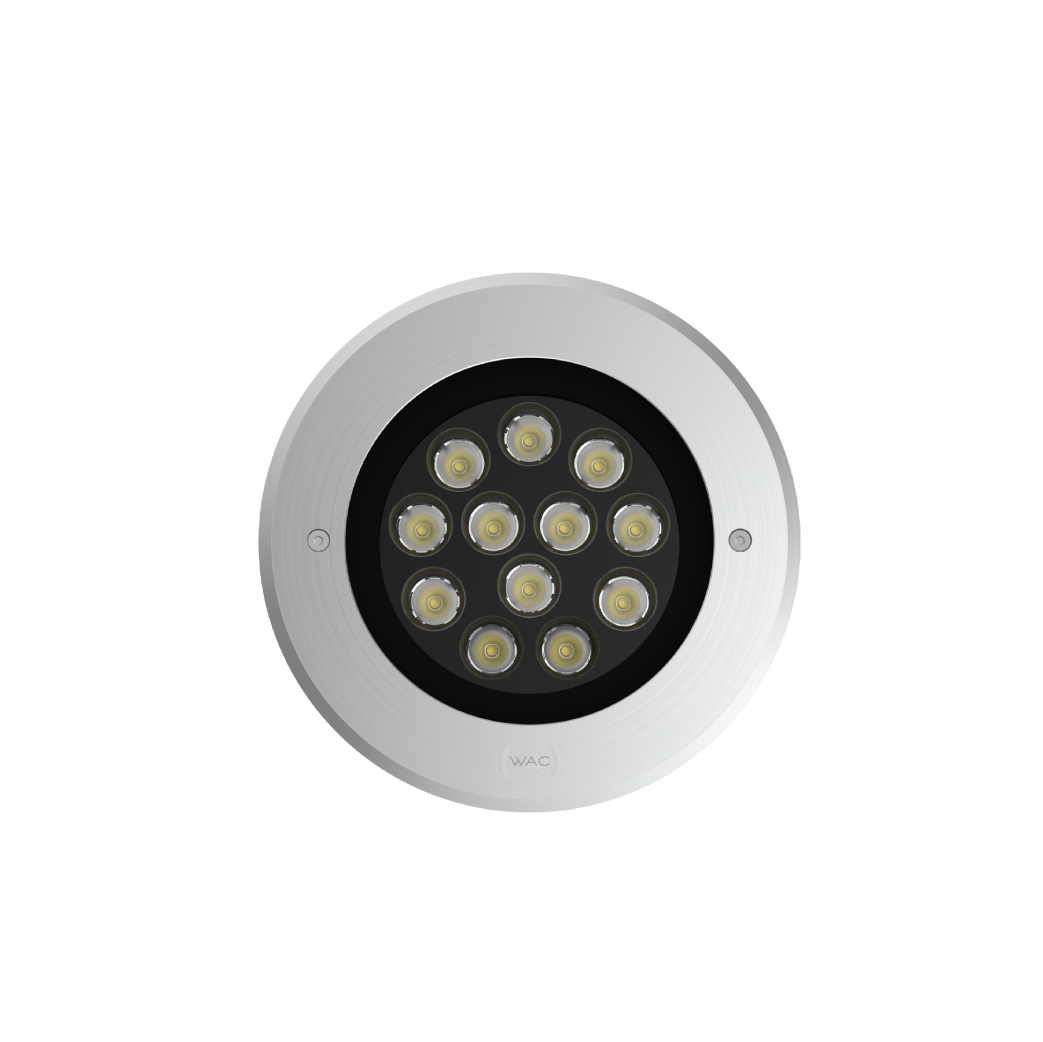

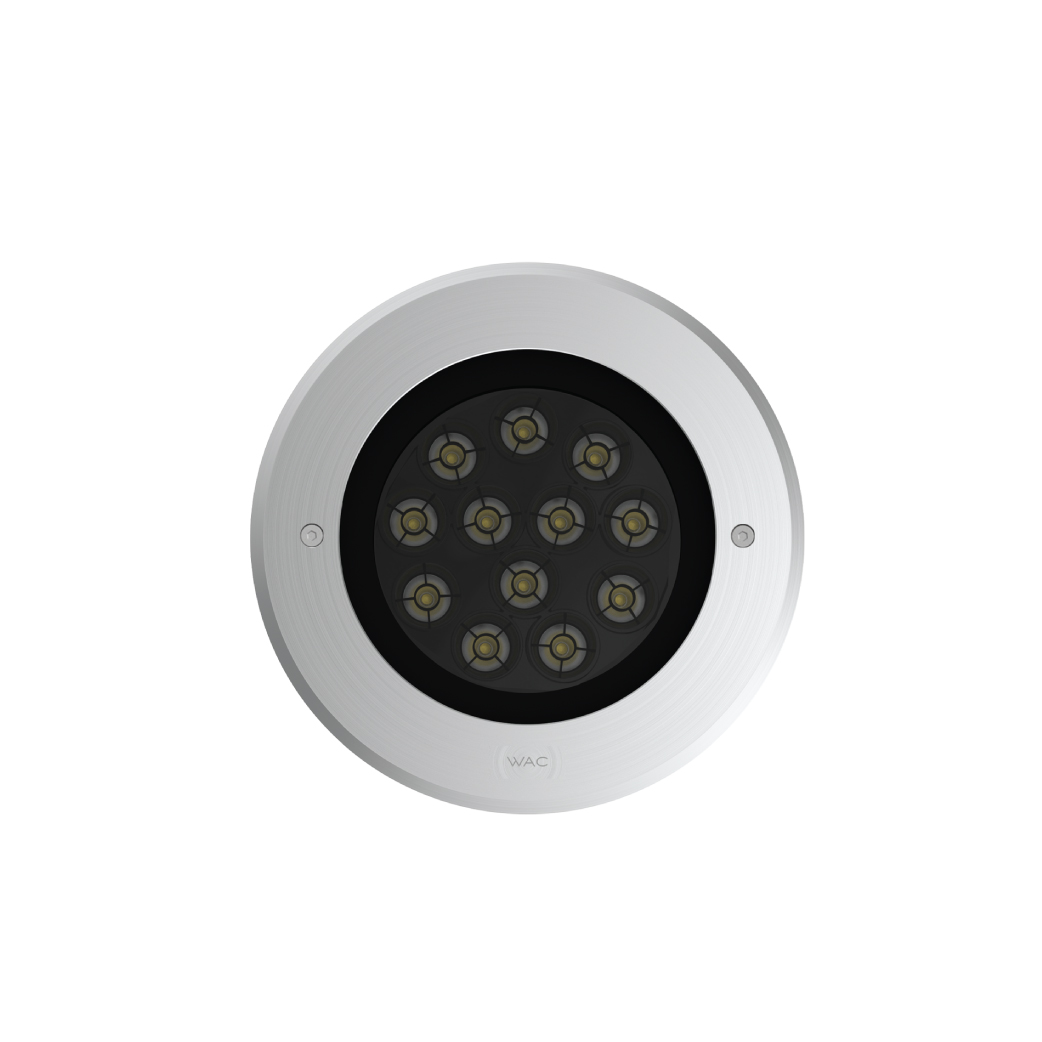

FUEGO Compact 面框采用优质 316 不锈钢，灯体铝压铸成型，高温粉末喷涂。适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。高透光率透镜+专利隐光系统。配合预埋筒的设计，方便客户安装与维护。
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens lm) | Control Systems | Beam | CCT | Finish |
EIR5S High Lumens | F Frame | 21 21(Max) | 12 | 1503 | EL ON-OFF | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5S High Lumens | F Frame | 19 19(Max) | 12 | 1360 | ML DMX512 Dimming | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

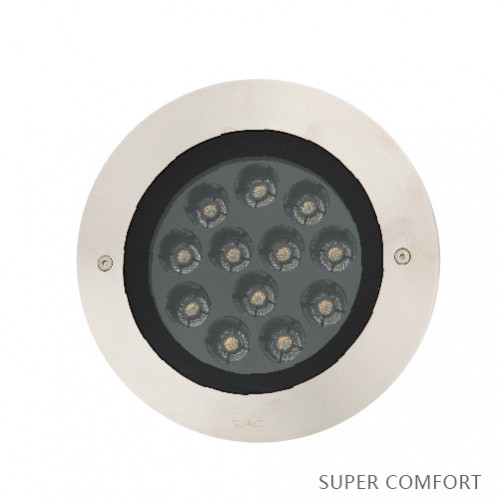

EIR6S Super Comfort | F Frame | 21 21(Max) | 12 | 1044 | EL ON-OFF | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6S Super Comfort | F Frame | 19 19(Max) | 12 | 945 | ML DMX512 Dimming | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
示例：EIR6SF-21EL-S27SS
