EP4NI/EP4SI/EP4MI/EP4LI/EP6SI/EP6LI/220V AC/Φ80/Φ100/Φ130/Φ160/Φ290/Φ335

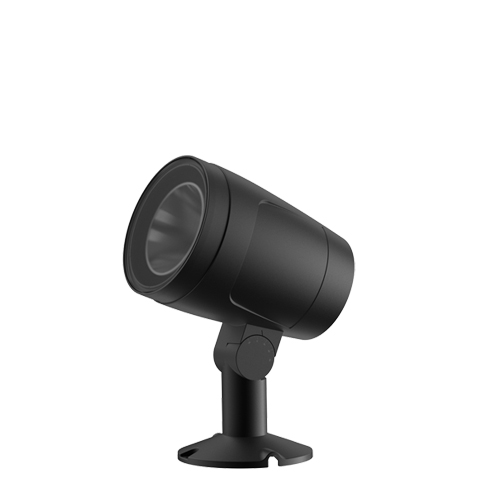

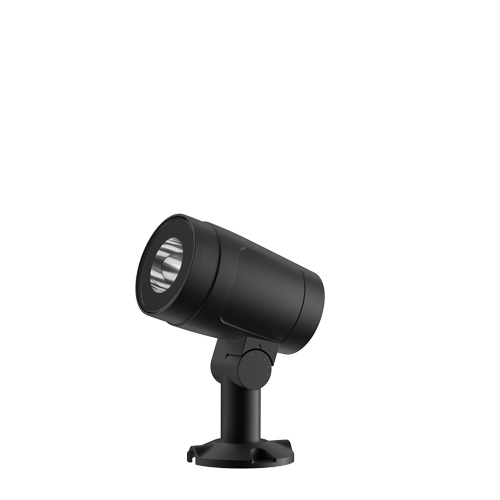

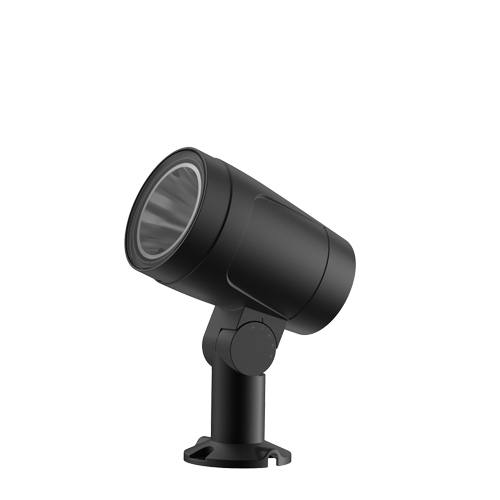

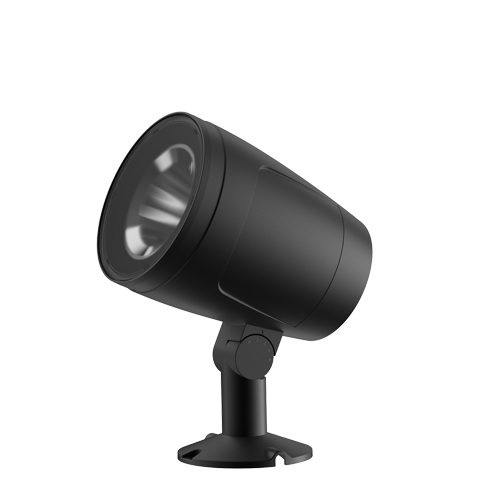

低调的轮廓设计与高性能的光学表现更突显环境，PANTHER 系列灯具具有多种尺寸以及最新的 LED 技术。可以垂直与水平方向精确调节转动。可应用于建筑立面或景观投射等场所。

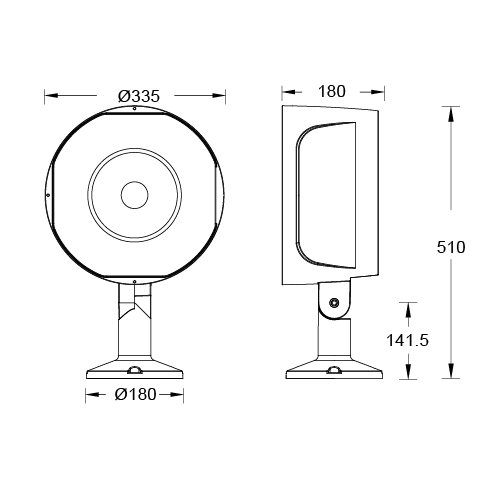

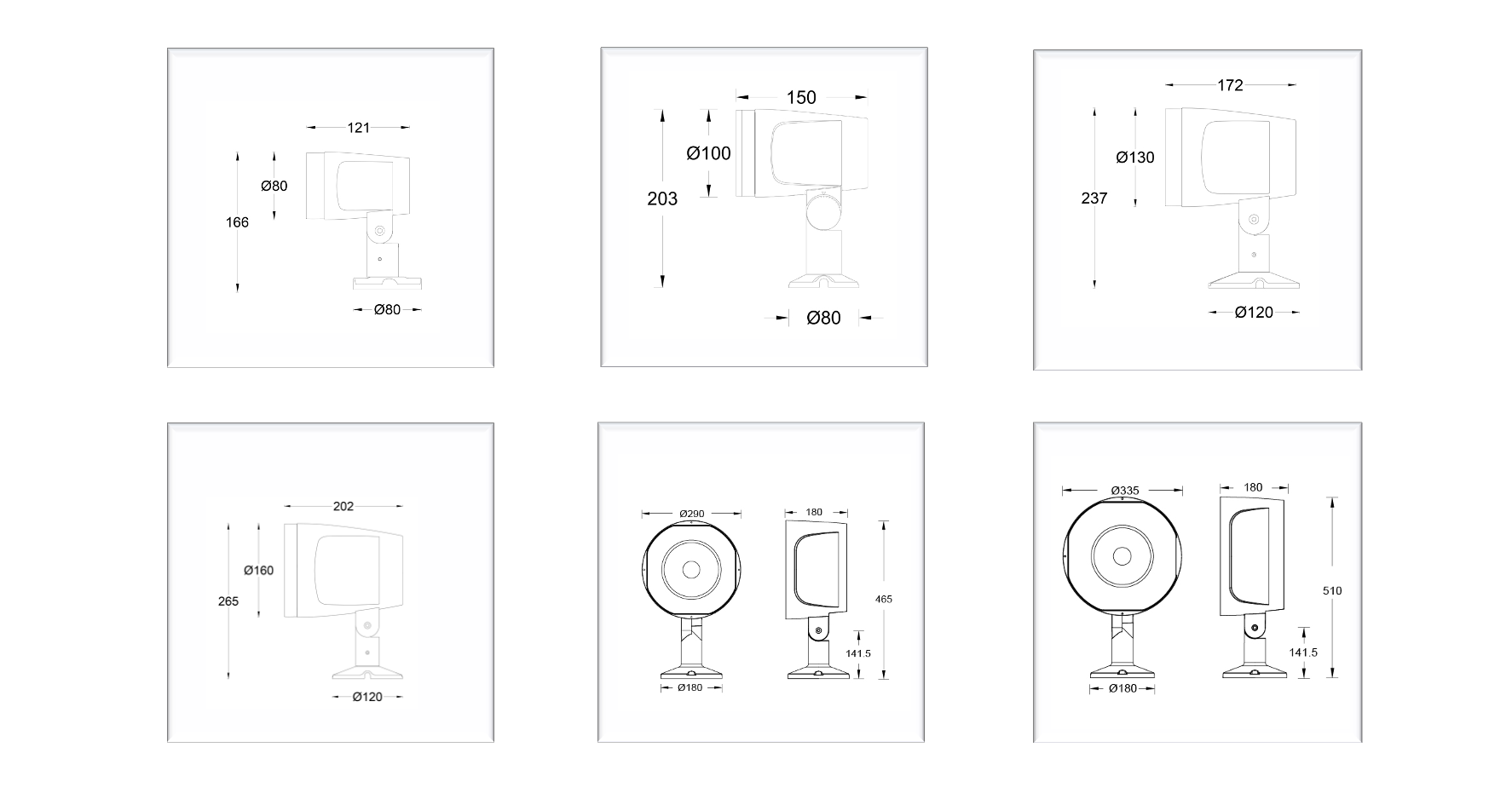

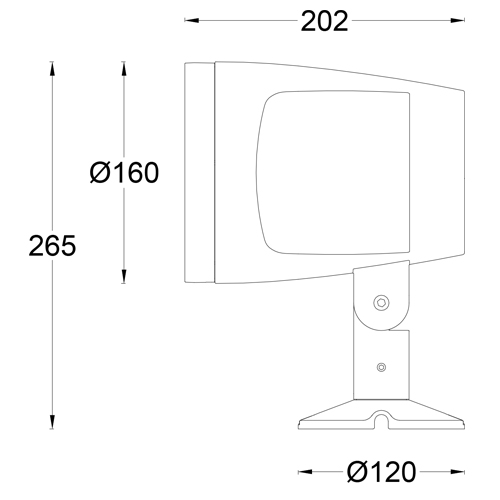

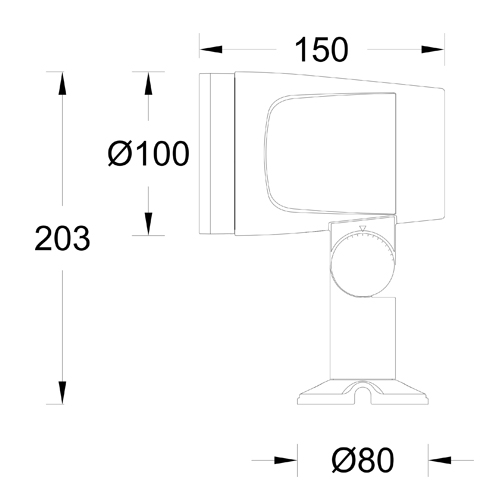

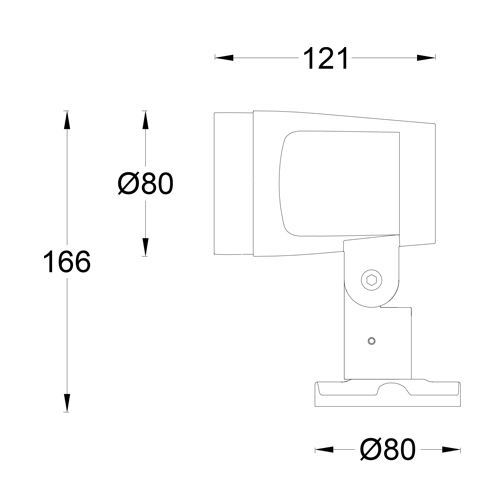

Φ80/Φ100/Φ130/Φ160/Φ290/Φ335 产品尺寸预览图
| Model | Power (W) | LEDs (Quantity) | Max Lumens (lm)@3000K | Control Systems | Beam | CCT | Finish |
EP4NI-10 | 10(Max) | COB | 850 | EL ON-OFF 220V AC Power Supply | 1 15° 2 28° 3 38° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs (Quantity) | Max Lumens (lm)@3000K | Control Systems | Beam | CCT | Finish |
EP4SI-20 | 20(Max) | COB | 2047 | EL ON-OFF 220V AC Power Supply | 1 18° 3 30° 4 40° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs (Quantity) | Max Lumens (lm)@3000K | Control Systems | Beam | CCT | Finish |
EP4MI-30 | 30(Max) | COB | 2693 | EL ON-OFF 220V AC Power Supply | 1 19° 2 27° 4 40° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs (Quantity) | Max Lumens (lm)@3000K | Control Systems | Beam | CCT | Finish |
EP4LI-54 | 54(Max) | COB | 5130 | EL ON-OFF 220V AC Power Supply | 2 23° 3 33° 4 45° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs (Quantity) | Max Lumens (lm)@3000K | Control Systems | Beam | CCT | Finish |
EP6SI-070 | 70(Max) | COB | 7669 | EL ON-OFF | 2 23° 3 33° 4 45° 8 80° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs (Quantity) | Max Lumens (lm)@3000K | Control Systems | Beam | CCT | Finish |
EP6LI-108 | 108(Max) | COB | 10455 | EL ON-OFF | 2 23° 3 33° 4 45° 8 80° | 27 2700K 30 3000K 40 4000K | BK Black |
示例：EP6LI-108EL-830BK
