目录
EP1TI/EP1NI/EP1SI/EP1MI/EP1LI 24V DC/Φ50/Φ80/Φ100/Φ130/Φ160

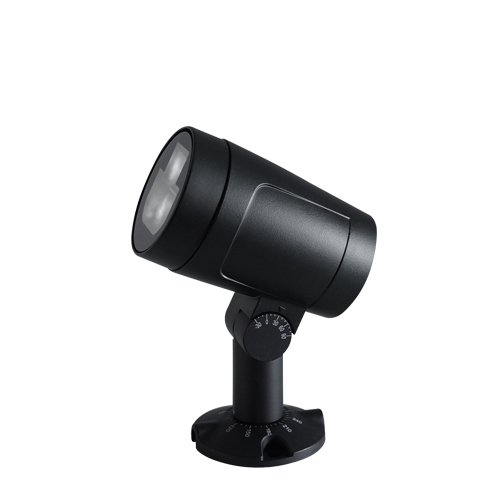

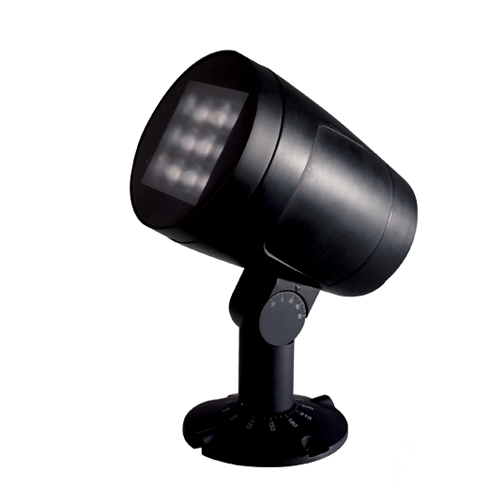

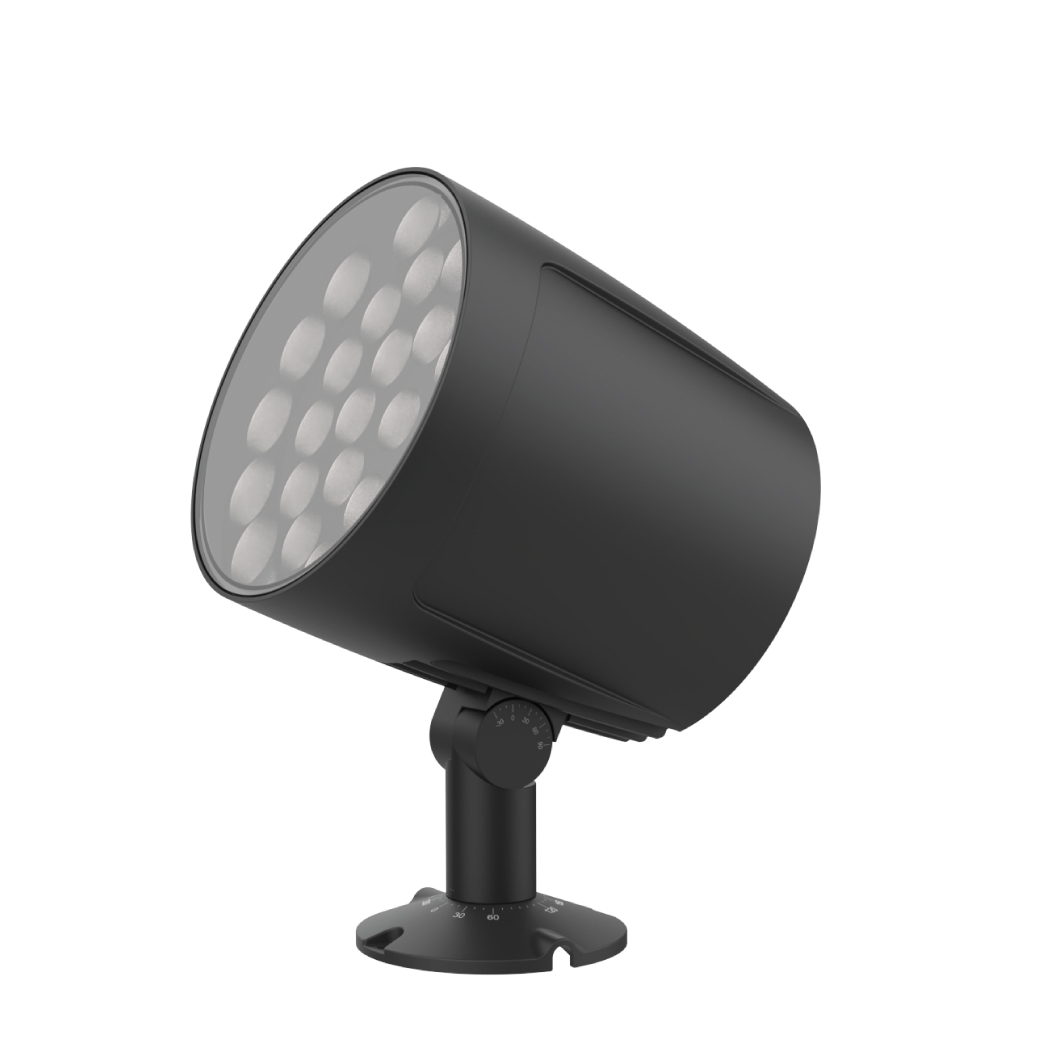

低调的轮廓设计与高性能的光学表现更突显环境，PANTHER 系列灯具具有多种尺寸以及最新的 LED 技术。可以垂直与水平方向精确调节转动。可应用于建筑立面或景观投射等场所。
Φ50/Φ80/Φ100/Φ130/Φ160 尺寸图预览
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1TI-03 | 3(Max) | 1 | 159 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1NI-07 | 7(MAX) | 3 | 446 | ET ON-OFF 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1NI-07 | 7(MAX) | 3 | 446 | MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K FC RGB | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1SI-14 | 14(MAX) | 6 | 847 | ET ON-OFF 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1SI-14 | 14(MAX) | 6 | 847 | MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K FC RGB | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1MI-21 | 21(MAX) | 9 | 1328 | ET ON-OFF 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1MI-21 | 21(MAX) | 9 | 1328 | MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K FC RGB | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1LI-33 | 33(MAX) | 15 | 2253 | ET ON-OFF 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm)4000K | Control Systems | Beam | CCT | Finish |
EP1LI-33 | 33(MAX) | 15 | 2253 | MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° J 12°x35° | 30 3000K 40 4000K FC RGB | BK Black |
示例：EP1LI-33ET-S30BK
