等间距排布设计，保证了均匀的出光效果，无阴影。符合 LEED 户外照明功耗设计的要求，整洁轻巧的外观确保轻松装配到外墙。配备柔性电缆，可自由选择侧面或底部出线，满足项目需求。灯具支持 DMX512 调光控制，带自动编址功能。

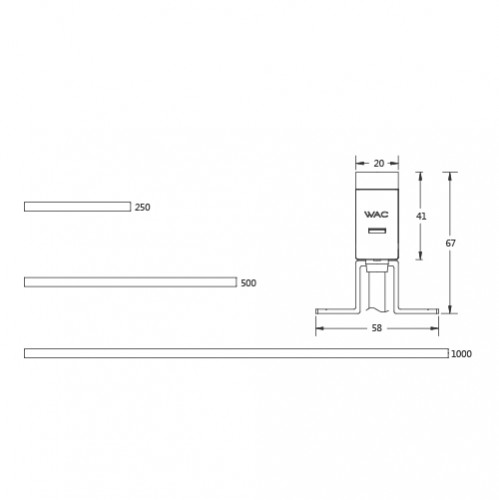

| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELD103-03 | 250 | 03(Max) | 12 | 153 | ET ON-OFF 24V DC Powe Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELD103-03 | 250 | 03(Max) | 12 | 153 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELD105-06 | 500 | 06(Max) | 24 | 305 | ET ON-OFF 24V DC Power Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELD105-06 | 500 | 06(Max) | 24 | 305 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELD110-12 | 1000 | 12(Max) | 48 | 610 | ET ON-OFF 24V DC Power Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELD110-12 | 1000 | 12(Max) | 48 | 610 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 4 4 Phase 8 8Phase | 27 2700K 30 3000K 40 4000K FC RGB | BK Black |
示例：ELD110-12ET-P027BK
