圆柱形灯身呈流线性造型，精美的线条结合背部轮廓的设计，使灯具更为立体，适应于当今的建筑趋向。该产品适用于 W 三回路轨道系统，独特的 W Module 模组化光学系统设计，自带 30°防眩光角，可提供多种配光形式，满足不同的应用需求
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL51S PALOMA Pro | LD02 LED 2W | E ON-OFF | V 4° | 9 90 | 30 3000K 40 4000K | WT White BK Black PT Platinum |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL52S PALOMA Pro | LD08 LED 8W | E ON-OFF | S 7° 1 14° 2 20° 3 30° 4 40° E 10°x30° O 30°x10° | 9 90 | 30 3000K 40 4000K | WT White BK Black PT Platinum |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL54S PALOMA Pro | LD18 LED 18W | E ON-OFF | S 7° 1 14° 2 20° 3 30° 4 40° E 10°x30° O 30°x10° | 9 90 | 30 3000K 40 4000K | WT White BK Black PT Platinum |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |

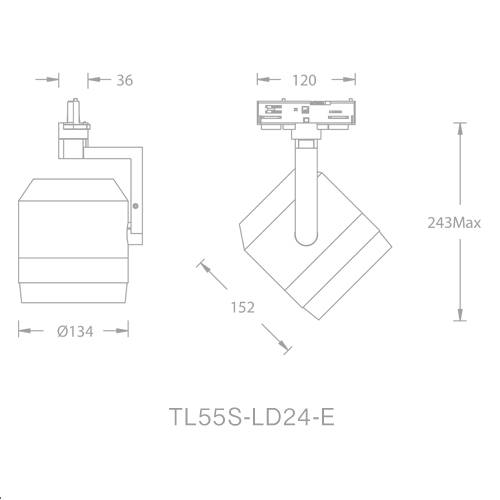

TL55S PALOMA Pro | LD24 LED 24W | E ON-OFF | S 7° 1 14° 2 20° 3 30° 4 40° E 10°x30° O 30°x10° | 9 90 | 30 3000K 40 4000K | WT White BK Black PT Platinum |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL56S PALOMA Pro | LD24 LED 24W LD32 LED 32W | E ON-OFF | S 7° 1 14° 2 20° 3 30° 4 40° E 10°x30° O 30°x10° | 9 90 | 30 3000K 40 4000K | WT White BK Black PT Platinum |
示例 :TL56SLD32-E-S930BK
