特殊透镜或偏光光学系统，配合合理的LED灯珠排列，使光线均匀地洒在墙面上，无暗区或眩光。兼具高效散热、节能低耗与防眩柔光优势。DC24V 输入, 可首尾相接, 适用于办公空间,展览,酒店及商业公区的暗槽安装式线性洗墙应用。

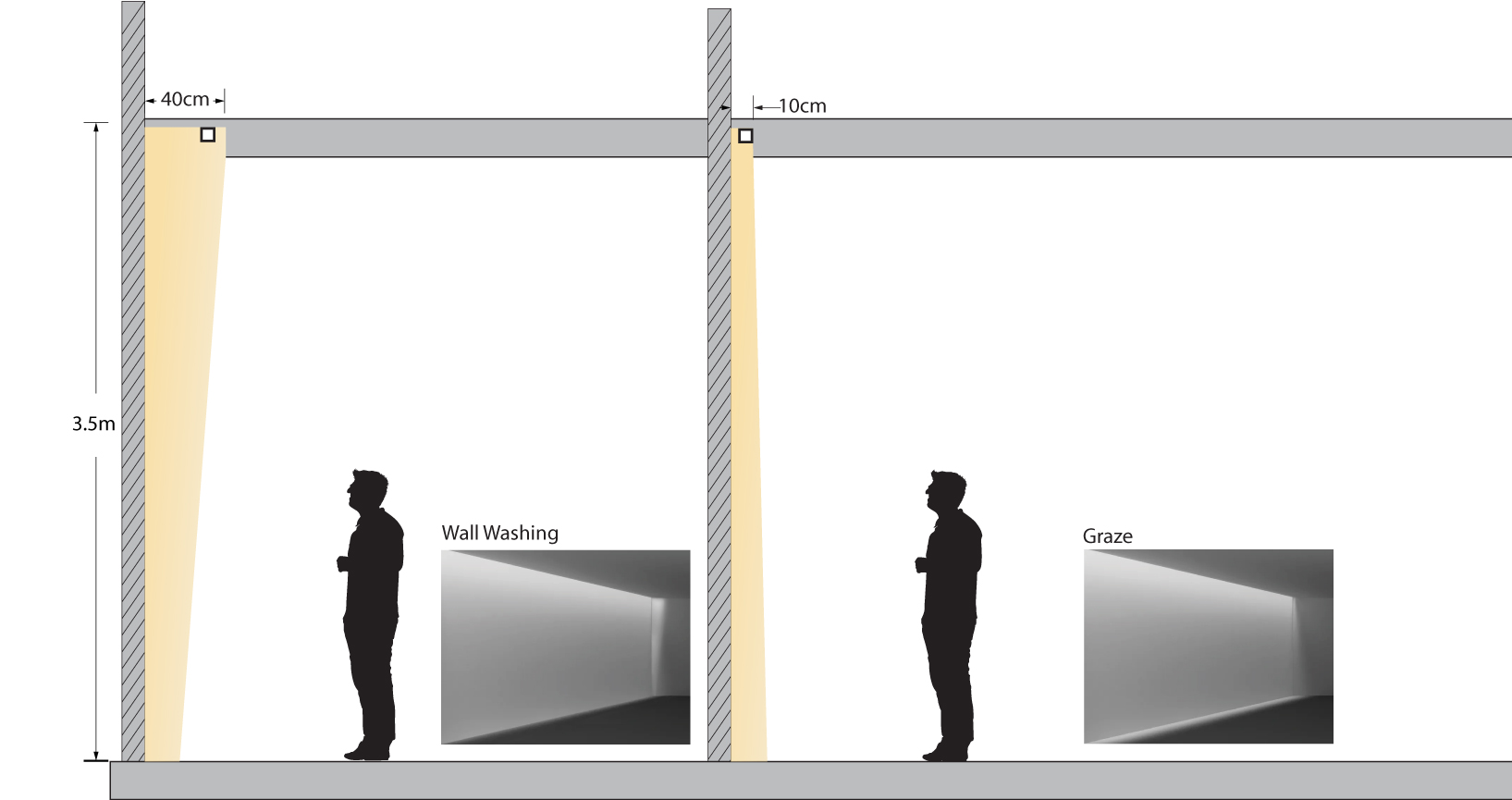

洗墙与擦墙不同安装距离不同照明效果模拟对比
Model | Length (mm) | Power (W) | Driver | Beam | CRI | CCT | Finish |
OC3N | 02 244 | 05 05W | N No Driver | W Wall Washer | 9 Ra90 A Ra97(Ra≥95)
| 27 2700K 30 3000K 40 4000K | WT White BK Black |
Model | Length (mm) | Power (W) | Driver | Beam | CRI | CCT | Finish |
OC3N | 05 484 | 10 10W | N No Driver | W Wall Washer | 9 Ra90 A Ra97(Ra≥95)
| 27 2700K 30 3000K 40 4000K | WT White BK Black |
Model | Length (mm) | Power (W) | Driver | Beam | CRI | CCT | Finish |
OC3N | 10 964 | 20 20W | N No Driver | W Wall Washer | 9 Ra90 A Ra97(Ra≥95)
| 27 2700K 30 3000K 40 4000K | WT White BK Black |
示例：OC3N-1020N-W930WT, 备注：最大串接长度5m。
