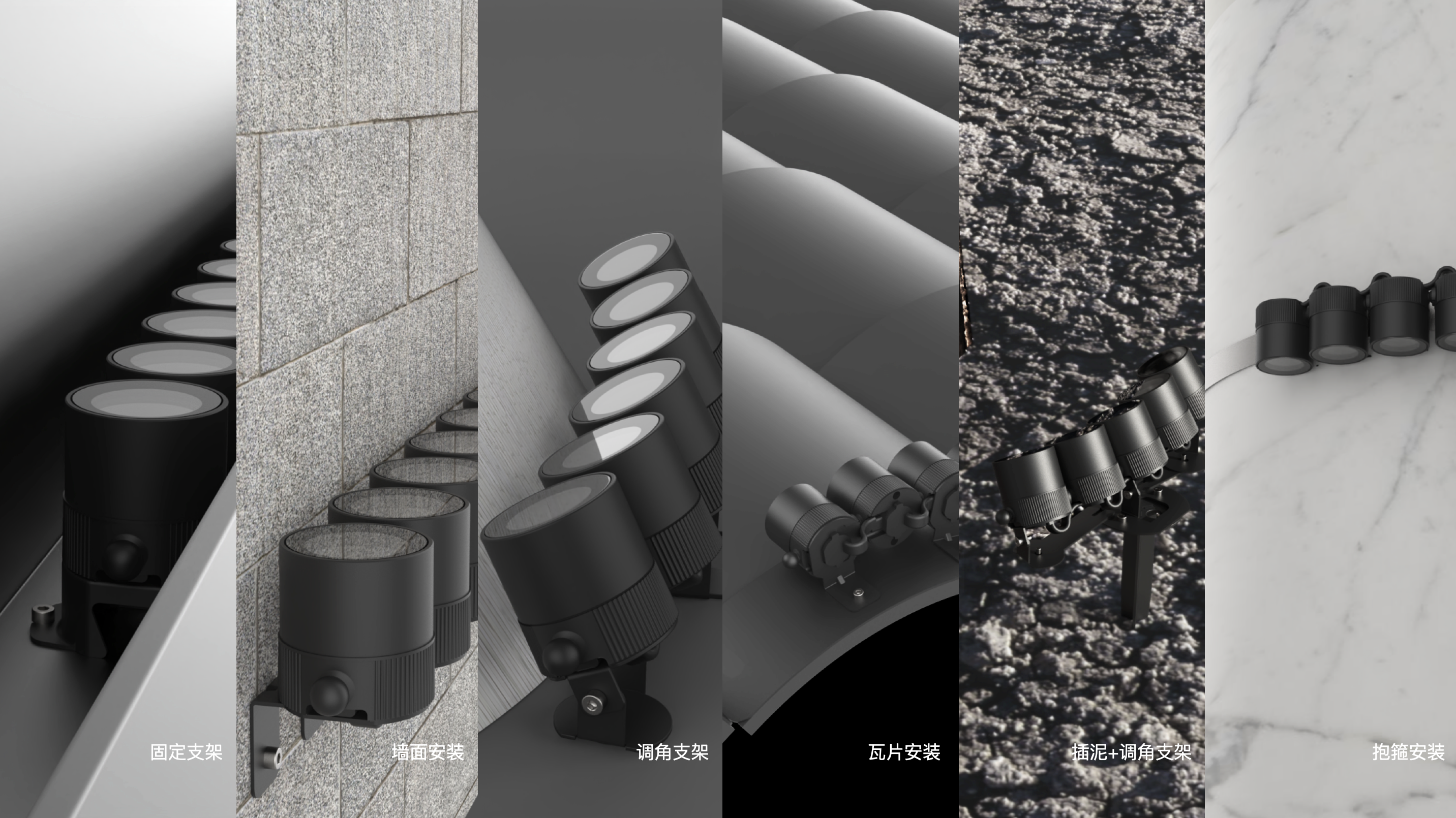

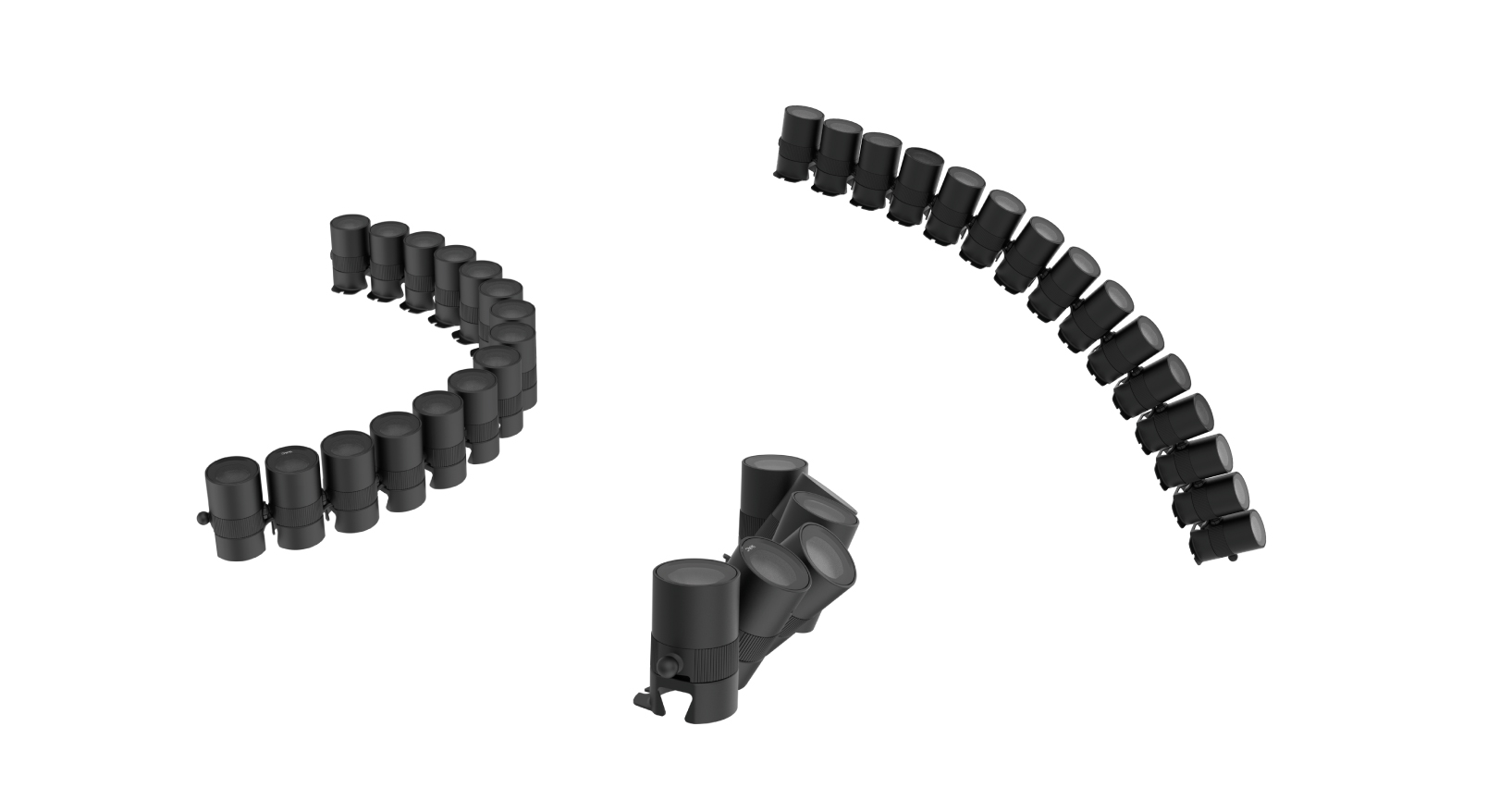

Trinity是WAC为高端户外照明场所设计的专业LED线性灯。三个方向可任意角度调整，满足不同的应用场合；灯具有多种配件可供选择，可以适合多样化的安装需求和照明应用解决方案。

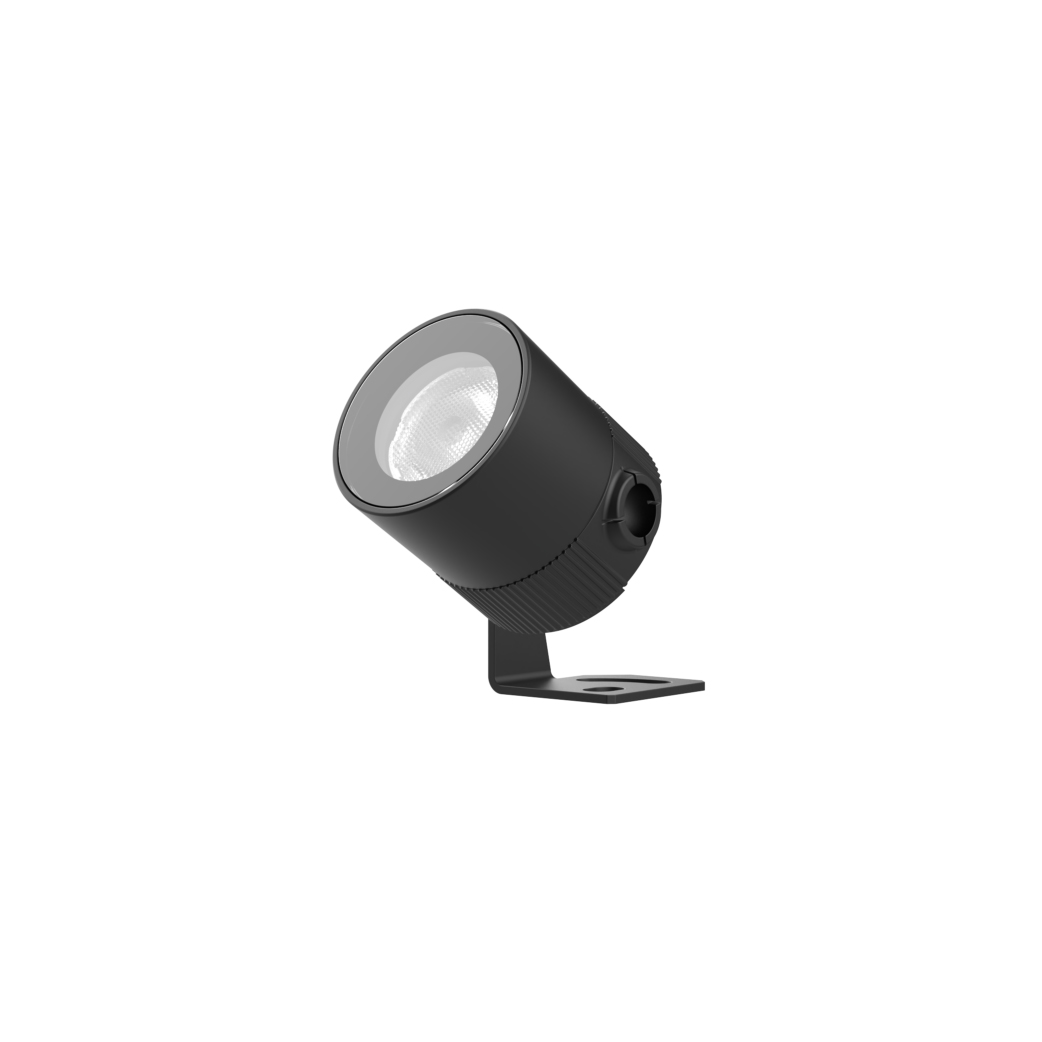

Trinity

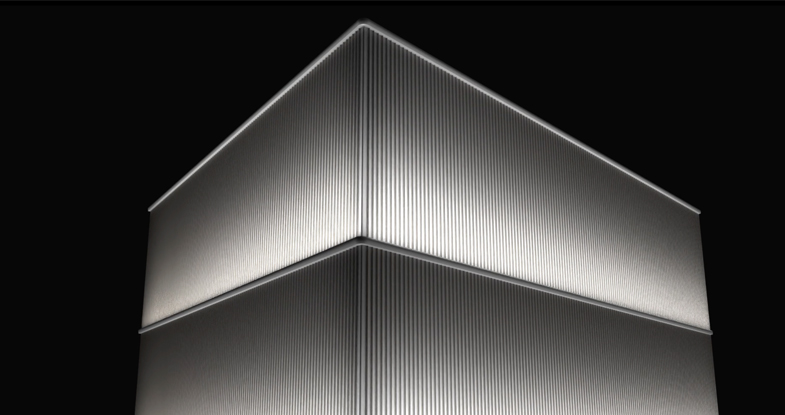

应用场景
Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
ELS401 | 03 3(Max) | 1 | 121 | ET ON-OFF 24V~48V DC Power Supply MT DMX512 Dimming 24V~48V DC Power Supply | S 9° 1 12° 2 20° 3 33° 5 51° E 14°×56° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
ELS401 | 03 3(Max) | 1 | 53 | MT DMX512 Dimming 24V~48V DC Power Supply | 1 18° 2 28° 5 51° G 23°×32° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
ELS403-19 ELS405-39 ELS410-78 | 250 500 1000 | 19(Max) 39(Max) 78 (Max) | 6 12 24 | 282 565 1129 | MT DMX512 Dimming 24V~48V DC Power Supply | 1 18° 2 28° 5 51° G 23°×32° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
ELS403-19 ELS405-39 ELS410-78 | 250 500 1000 | 19(Max) 39(Max) 78 (Max) | 6 12 24 | 730 1459 2918 | ET ON-OFF 24V~48V DC Power Supply MT DMX512Dimming 24V~48V DC Power Supply | S 9° 1 12° 2 20° 3 33° 5 51° E 14°×56° | 27 2700K 30 3000K 40 4000K | BK Black |
示例：ELS403-19MT-S30BK
