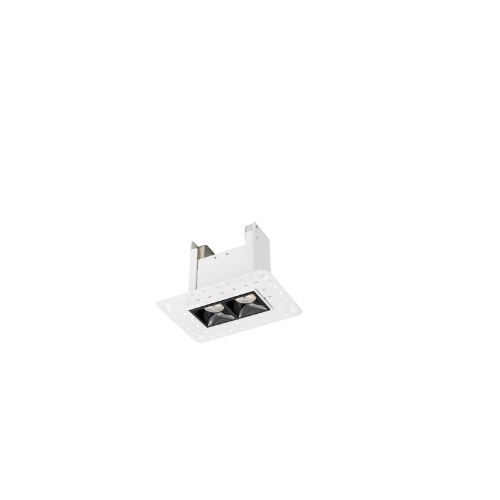

LIGNE PRO 嵌入式线性下照灯具，使用铝型材灯体，外观简洁大气美观。使用 LED 光源，高光效，高显指。运用独创的 SUBROSA 防眩光设计，深防眩，具备多种配光。主要适用于公共空间、商业、办公、展示照明等场所的照明应用。
可通过无边框配件，实现整洁、美观的安装效果

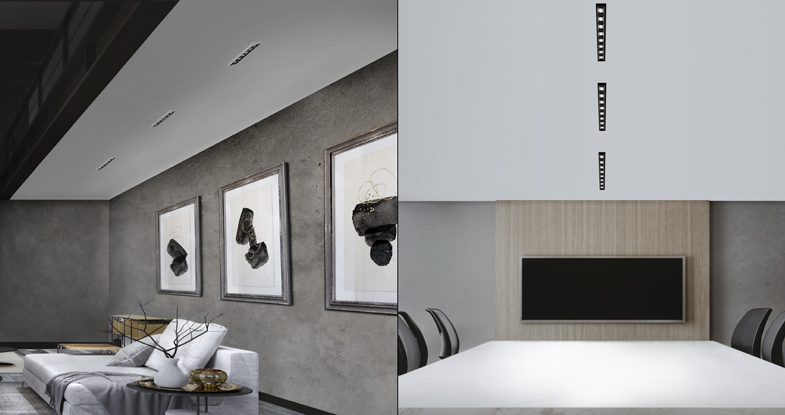

使用场景
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 06 6W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold H Haze | WT White |
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 11 11W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold | WT White |
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 22 22W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold | WT White |
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 32 32W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold | WT White |
示例:OR140DL-06E-140BWT
