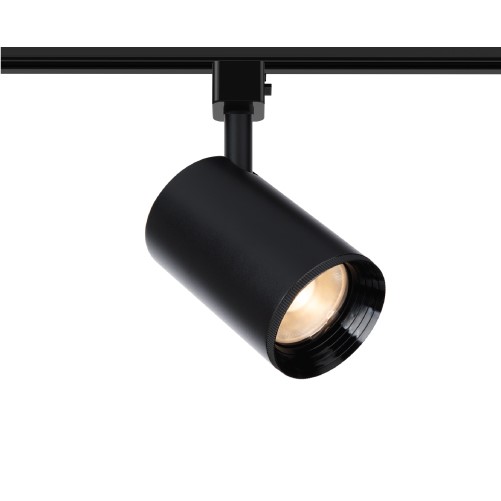

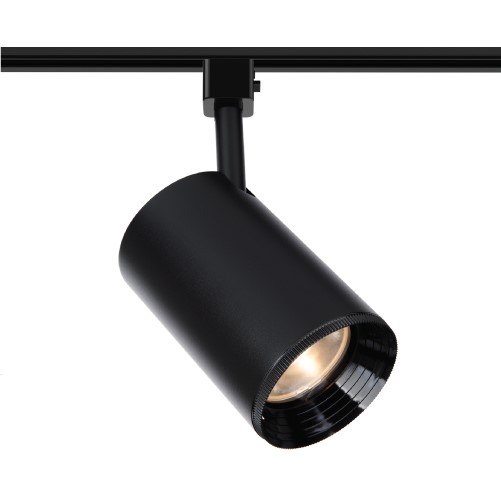

外形设计精致，无可视散热器，由压铸铝制成灯身，内置无频闪驱动电器，采用COB发光模组，具有丰富的光束角类型以及出色的显色性，可提供重点照明或环境照明。

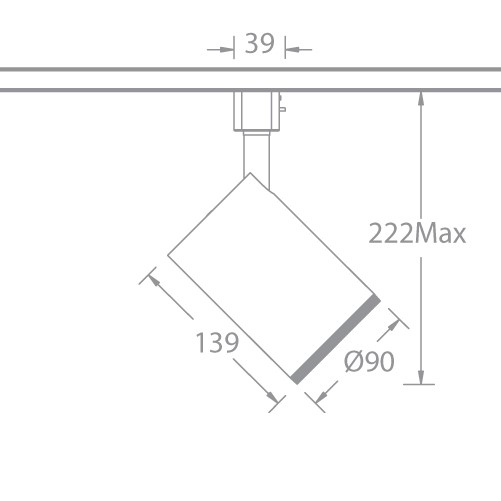

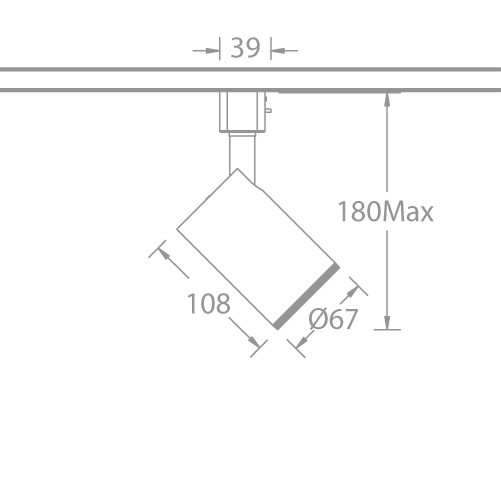

JL15H/JL16H/JL17H 尺寸图详情
宁波童衍方艺术馆
Model | LED | Dimming | Beam | CRI | CCT | Finish |
JL15H SILO Pro | LM06 COB 6W LM12 COB 12W | O On-board | 1 13° 2 24° 3 36° 5 55° | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
JL16H SILO Pro | LM18 COB 18W LM26 COB 26W | O On-board | 1 13° 2 24° 3 36° 5 55° | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
JL17H SILO Pro | LM34 COB 34W | O On-board | 1 13° 2 24° 3 36° 5 55° | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
示例：JL17HLM34-O-2930WT
