SLANA PRO

ES3NF/ES3SF/ES3MF IP65下照明装筒灯

下照 圆形

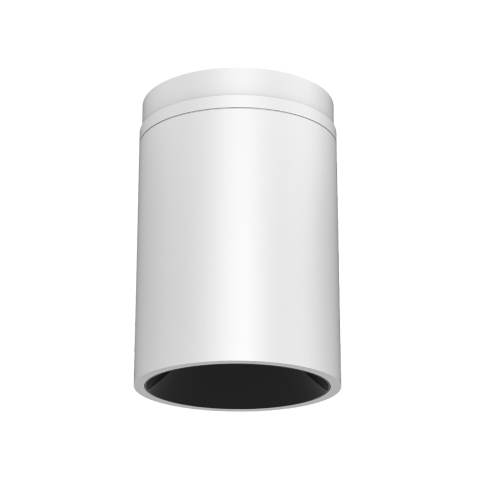

ES3NF/ES3SF/ES3MF IP65下照明装筒灯

Slana Pro Fix 下照明装筒灯,整灯精致简洁,精巧细致的外观和结构设计,采用吸顶安装和吊杆安装。卓越的光学性能,在建筑照明中更具有装饰性, 主要适用于公共高空的功能性照明。

产品特点

产品尺寸图

3/4/5 寸尺寸图详情

使用场景 一

产品规格

Model

Comment

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Reflector

Finish

ES3N

F Fixed

25 25W(Max)

COB

2628

EL ON-OFF

220V AC Power Supply

DL 0-10V Dimming

220V AC Power Supply

1 19°

2 26°

3 38°

5 52°

30 3000K

40 4000K

B  Black

S  Specular

WT    White

Model

Comment

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Reflector

Finish

ES3S

F Fixed

33 33(Max)

COB

3680

EL ON-OFF

220V AC Power Supply

DL 0-10V Dimming

220V AC Power Supply

1 19°

2 26°

3 38°

5 52°

30 3000K

40 4000K

B  Black

S  Specular

WT    White

Model

Comment

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Reflector

Finish

ES3M

F Fixed

43 43(Max)COB

4350

EL ON-OFF

220V AC Power Supply

DL 0-10V Dimming

220V AC Power Supply

1 15°

2 24°

3 36°

5 50°

30 3000K

40 4000K

B  Black

S  Specular

WT    White

示例:ES3MF-43EL-130BWT
