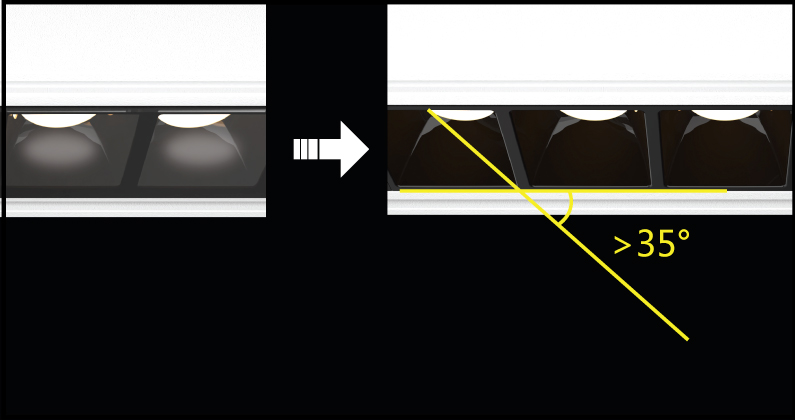

嵌入式线性下照灯具，采用 SUBROSA 隐光技术，具备多种配光，AC220V 输入，适用于户外暗槽安装式应用。
LANNE LINEAR
LANNE LINEAR

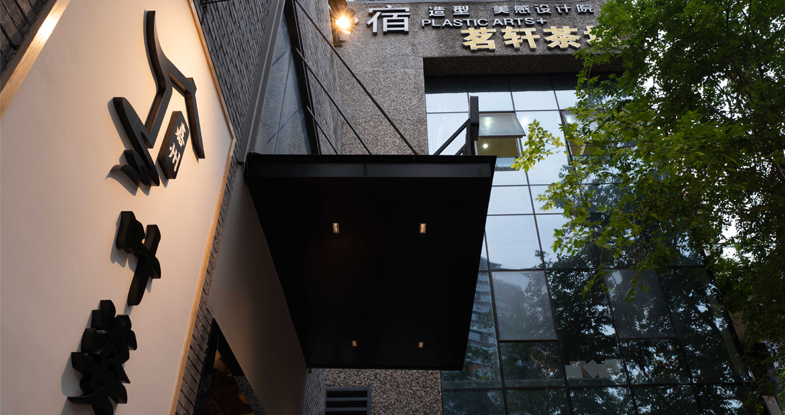

成都“叶婆婆”汇锦广场店

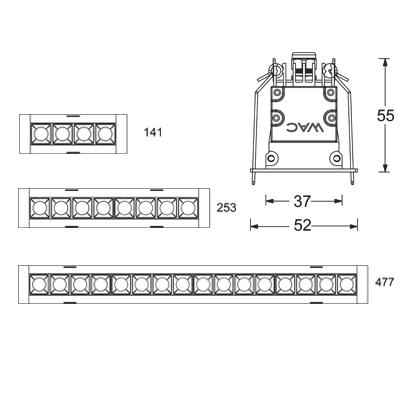

Model | Length(mm) | Comment | LED Power(W) | LEDs(Quantity) | Control System | Beam | CCT | Finish |

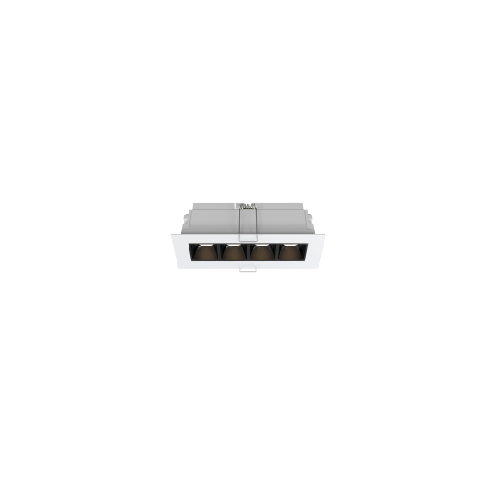

ER3 | 01 141mm | F Frame | 08 8W | 4pcs | EL ON-OFF 220VAC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
Model | Length(mm) | Comment | LED Power(W) | LEDs(Quantity) | Control System | Beam | CCT | Finish |

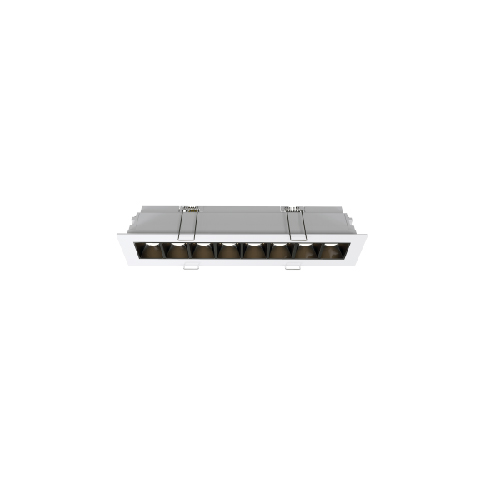

ER3 | 03 253mm | F Frame | 16 16W | 8pcs | EL ON-OFF 220VAC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
Model | Length(mm) | Comment | LED Power(W) | LEDs(Quantity) | Control System | Beam | CCT | Finish |
ER3 | 05 477mm | F Frame | 32 32W | 16pcs | EL ON-OFF 220VAC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
示例：ER305F-32EL-130WT
