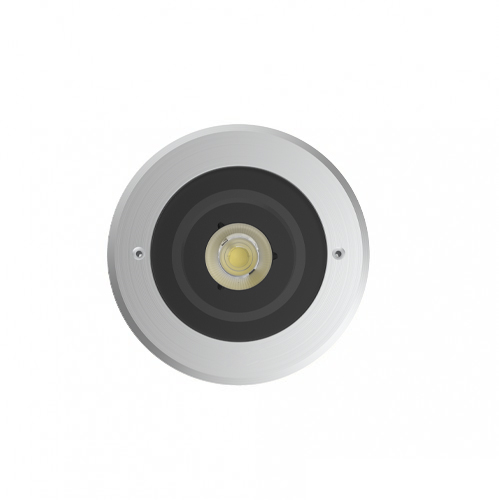

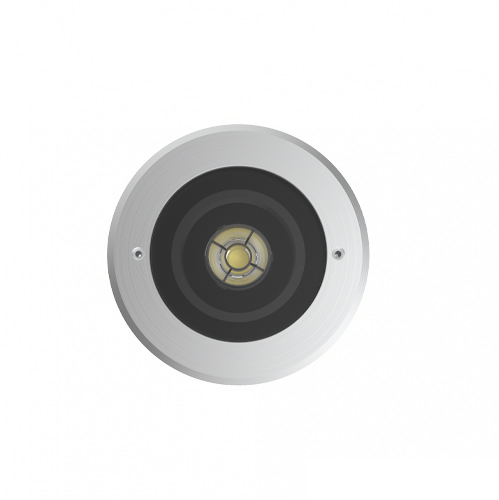

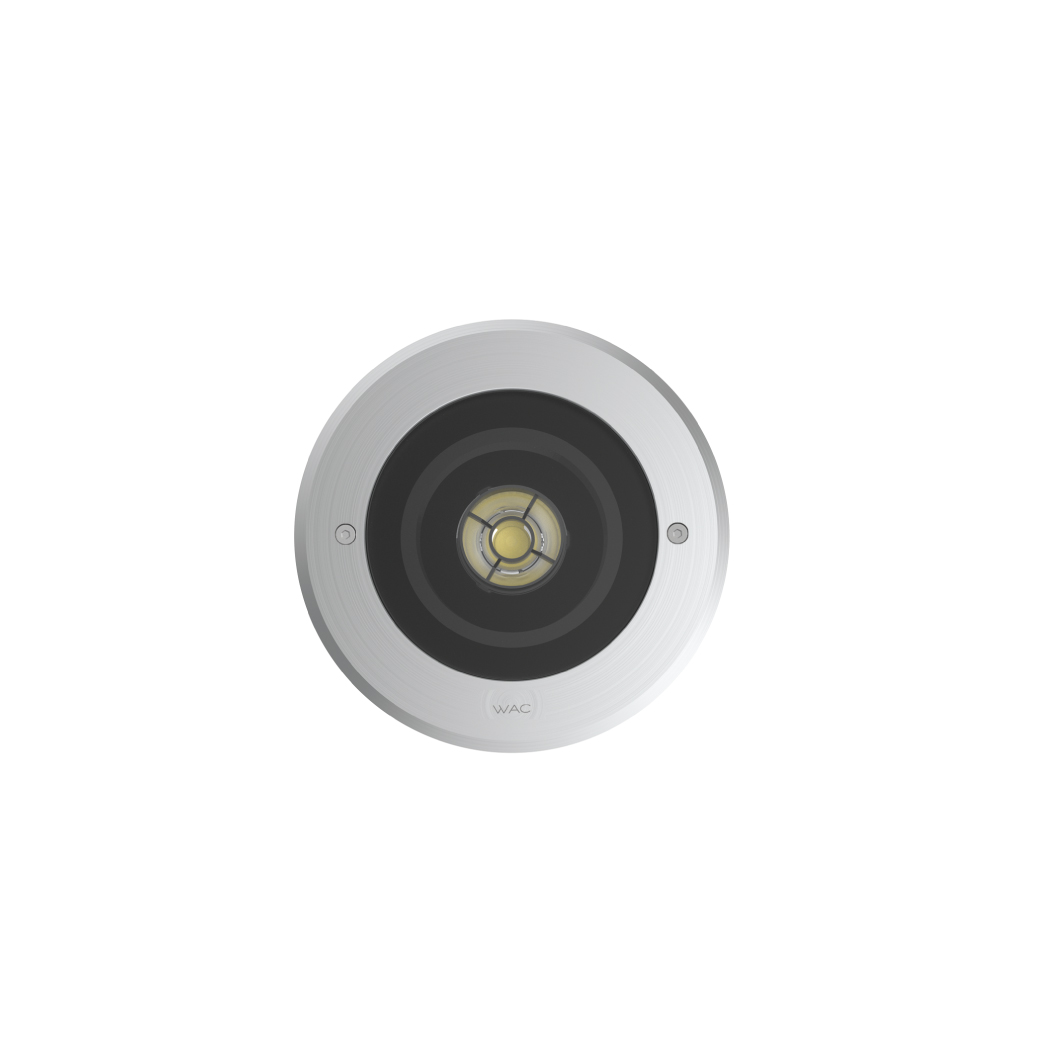

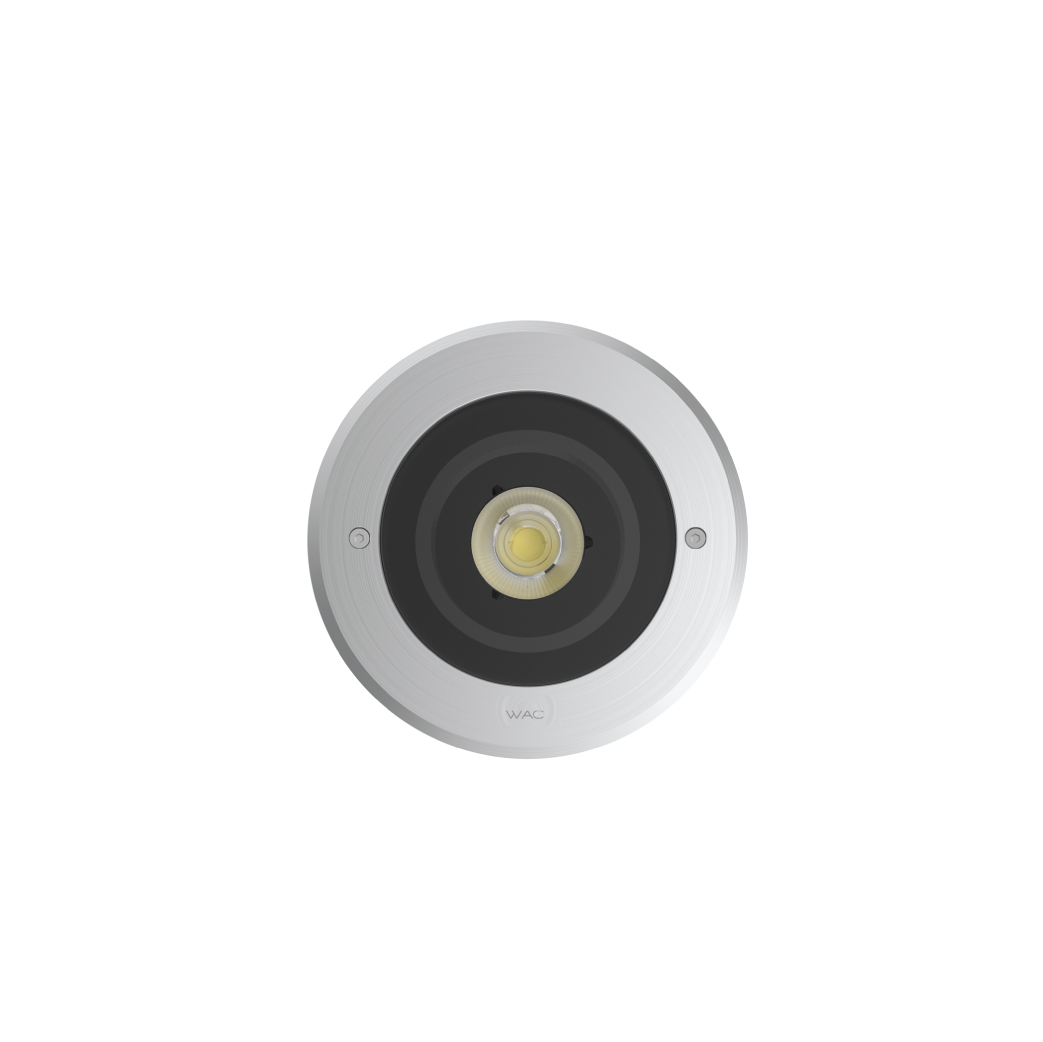

FUEGO COMPACT

EIR7N/EIR8N/Up Light/COB/Φ180

上照 COB Φ180

上照 COB Φ180

EIR7N/EIR8N/Up Light/COB/Φ180

FUEGO Compact 面框采用优质不锈钢,灯体铝压铸成型,高温粉末喷涂,适用于户外环境,IP67 防护等级, IK08 防冲击等级,可抗压 2000kg。配合预埋筒的设计,方便客户安装与维护。

产品特点
产品规格

Model

Comment

Power

(W)

LEDs

(Quantity)

Max Lumens

(lm)

Control   Systems

Beam

CCT

Finish

EIR7N

High Lumens

F  Frame

13 13(Max)

COB

1080

EL   ON-OFF
220V AC Power Supply

1   17°

2   29°

4   49°

6   62°

27  2700K

30  3000K

40  4000K

SS   Stainless Steel

Model

Comment

Power

(W)

LEDs

(Quantity)

Max Lumens

(lm)

Control   Systems

Beam

CCT

Finish

EIR8N

Super Comfort

F  Frame

13 13(Max)

COB

537

EL   ON-OFF
220V AC Power Supply

1   17°

2   26°

4   41°

6   60°

27  2700K

30  3000K

40  4000K

SS   Stainless Steel

示例:EIR8NF-13EL-127SS
