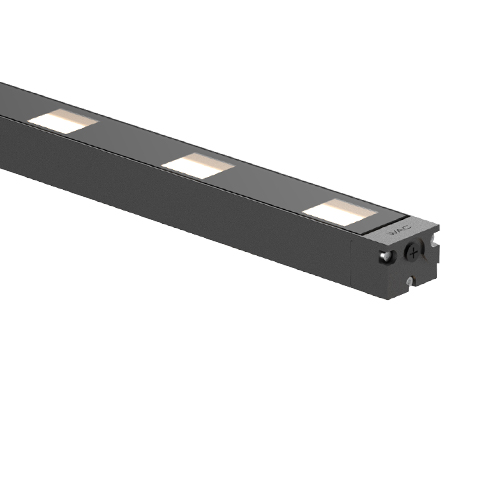

配备光效强，寿命长的高质量芯片以及独特光学性能的透镜，结合等间距排布设计，保证了均匀的出光。 灯具从侧边出线，特殊配置的 Gore 呼吸阀，可有效平衡内外部气压，以防冷凝水，符合 LEED 户外照明功耗设计的要求。
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV203-07 | 300 | 7(Max) | 3 | 455 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV206-14 | 600 | 14(Max) | 6 | 890 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV209-21 | 900 | 21(Max) | 9 | 1329 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV212-28 | 1200 | 28(Max) | 12 | 1772 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
示例：ELV203-07MT-CS30-B
