提供对称和非对称配光可选，灯具两侧无逸散光斑，LED 等间距排布，灯具拼接是无暗区。 Graze 系列灯具从底部出线，特殊配置的 Gore 呼吸阀，可有效平衡内外部气压，以防冷凝水，符合 LEED 户外照明功耗设计的要求。

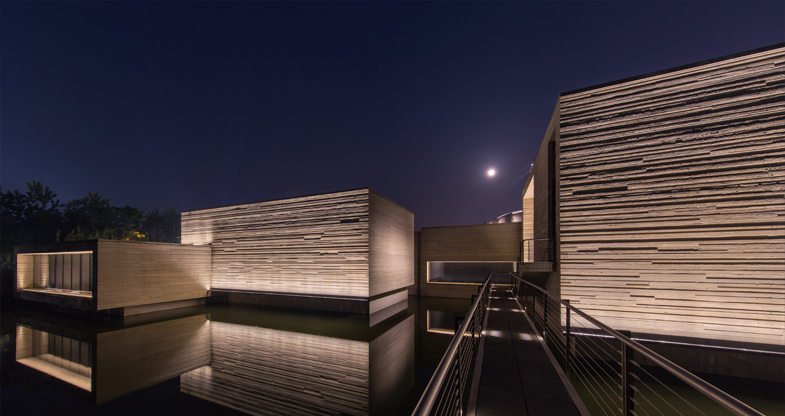

木心美术馆
| Model | Length(mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS203-14 | 300 | 14(Max) | 6 | 949 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33°5 51° E 9°*15° G 15°*43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS205-28 | 500 | 28(Max) | 12 | 1898 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33°5 51° E 9°*15° G 15°*43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS210-56 | 1000 | 56(Max) | 24 | 3795 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | V 5° S 9° 1 17° 2 22° 3 33°5 51° E 9°*15° G 15°*43° | B Bottom S Side | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length(mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS203-14 | 300 | 14(Max) | 6 | 515 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 26° 3 39°4 49° F 20°*45° | B Bottom S Side | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
| Model | Length(mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS205-28 | 500 | 28(Max) | 12 | 1030 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 26° 3 39°4 49° F 20°*45° | B Bottom S Side | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
| Model | Length(mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
| ELS210-56 | 1000 | 56(Max) | 24 | 2061 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 26° 3 39°4 49° F 20°*45° | B Bottom S Side | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
示例: ELS205-28MT-1BF3BK
