等间距排布设计，保证了均匀的出光效果，无阴影。符合 LEED 户外照明功耗设计的要求，整洁轻巧的外观确保轻松装配到外墙。配备柔性电缆，可自由选择侧面或底部出线，满足项目需求。灯具支持 DMX512 调光控制，带自动编址功能。

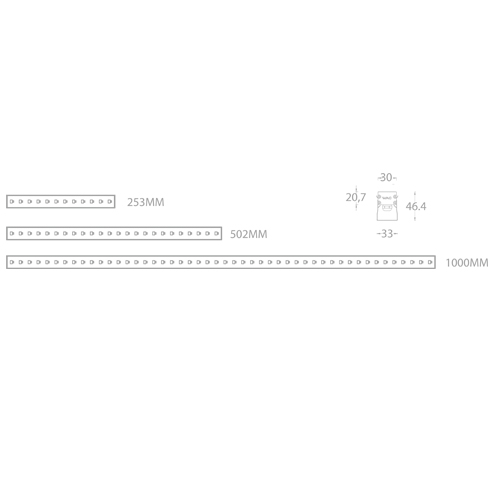

| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC303-03 | 253 | 03(Max) | 12 | 190 | ET ON-OFF 24V DC Power Supply
| A 120° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC305-06 | 502 | 06(Max) | 24 | 365 | ET ON-OFF 24V DC Power Supply
| A 120° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC310-12 | 1000 | 12(Max) | 48 | 721 | ET ON-OFF 24V DC Power Supply
| A 120° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC303-03 | 253 | 03(Max) | 12 | 190 | MT DMX512 Dimming 24V DC Power Supply | A 120° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB FW RGBW | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC305-06 | 502 | 06(Max) | 24 | 365 | MT DMX512 Dimming 24V DC Power Supply | A 120° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB FW RGBW | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC310-12 | 1000 | 12(Max) | 48 | 721 | MT DMX512 Dimming 24V DC Power Supply | A 120° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB FW RGBW | BK Black |
示例：ELC303-03MT-A127BK
